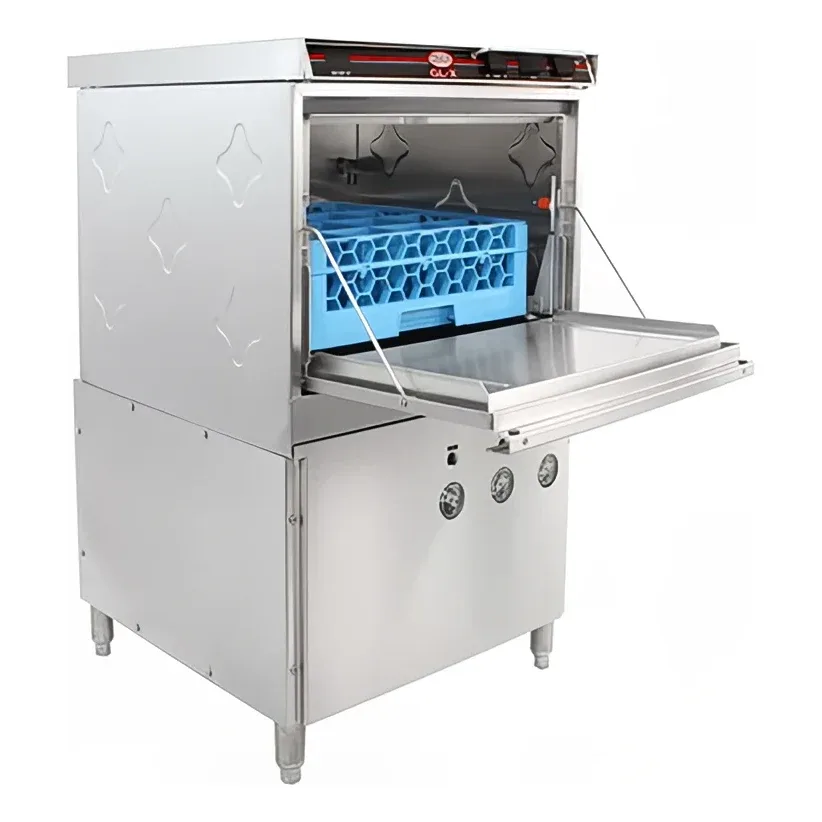

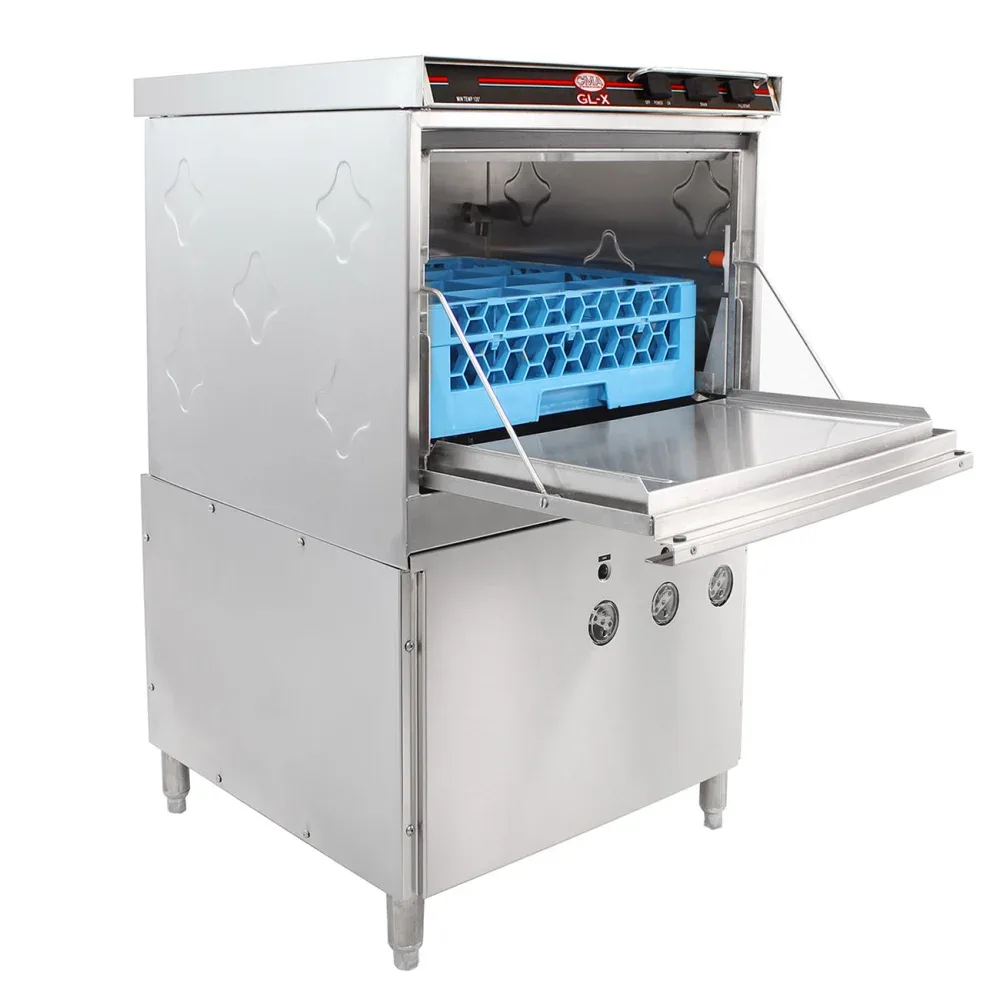

CMA Dishmachines H-1X High Temp Rack Undercounter Glass Washer w/ 24 Racks/hr Capacity, Built-in Booster, 208-240v/1ph

Operators can sanitize as much as 24 racks of glassware per hour with the CMA Dishmachines H-1X High Temp Rack Undercounter Glass Washer. Its high-temperature water sanitizes with a built-in booster heater for optimal cleaning, and it features a unique dump and fill cycle to drain wash water every cycle for a clean wash. Its pumped wash and rinse ensures exact water pressure, while its Safe T Temp feature offers a high-temperature final rinse every cycle. For simple machine monitoring, its top-mounted LCD display alerts operators of machine status and has simple-to-operate controls.

For flexible use, the CMA Dishmachines H-1X high-temp rack undercounter glass washer has removable upper and lower spray arms. Its built-in chemical pumps regulate chemical usage, while its pumped drain enables flexible installation without a floor drain. Designed with a pump purging system, this unit eliminates soil and chemical carryover during rinse cycles. For safe operation, it has a door safety switch, built-in prime switches, and an instant start. Overall, this piece measures 23⁷/₈ inches wide by 25 inches deep by 34¹/₂ inches high.

Product Details

• 1.4-gal. wash tank capacity
• Washes 24 racks and 96 covers per hour
• Undercounter design
• Stainless steel construction
• High temperature water sanitizing with built-in booster heater
• Unique dump & fill cycle drains wash water every cycle and refills with high-temperature water
• Pumped wash and rinse ensures exact water pressure for excellent results
• Safe T Temp feature provides a high temperature final rinse every cycle
• Top-mounted LCD display alerts users of machine status
• Simple-to-operate controls
• Removable spray arm system features upper and lower spray arms
• Built-in chemical pumps assure consistent chemical usage
• Pumped drain enables flexible installation without a floor drain
• Pump purging system eliminates soil and chemical carryover during rinse cycle
• Built-in prime switches and instant start
• Large 14¹/₄ in. L x 14¹/₄ in. W door opening
• Includes door safety switch for safe operation
• Factory-installed detergent and rinse pump
• Automatic fill feature
• Fits 20 in. L x 20 in. W dishracks
• Includes (1) dishrack
• Wash cycle temperatures: 150 to 160 degrees F
• Rinse cycle temperatures: 180 to 195 degrees F
• Recommended water temperature: 140 degrees F
• Minimum water temperature: 110 degrees F
• ³/₄-in. water inlet
• ³/₄-in. drain connection
• Requires 3-in. deep minimum clearance

Dimensions & Utilities

• 23⁷/₈ in. W x 25 in. D (40¹/₄ with door open) x 33¹/₂ in. H
• 1 HP, 22 A
• 8 kW
• 208 V/60 Hz/1ph
