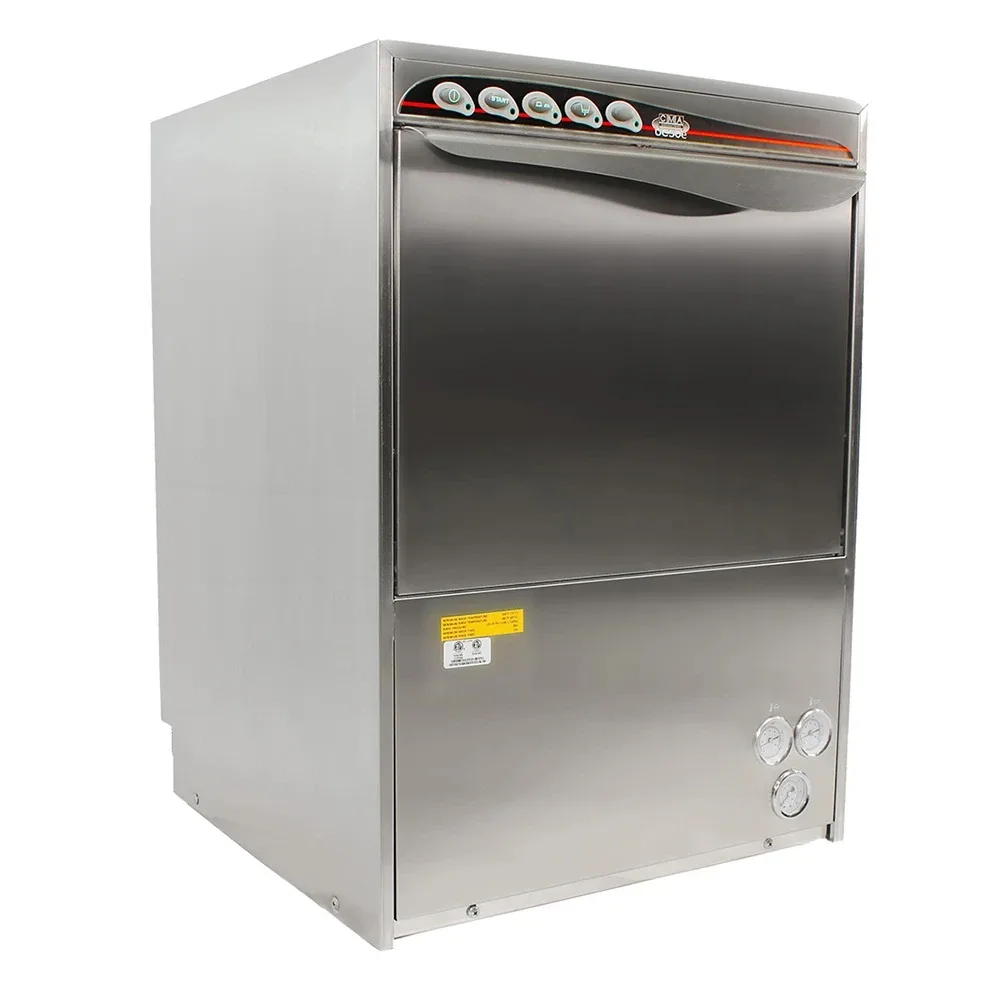

CMA Dishmachines UC50E High Temp Rack Undercounter Dishwasher w/ 30 Racks/hr Capacity, Built-in Booster, 208v/1ph

The CMA UC50E high-temp undercounter dishwasher can wash up to 30 racks per hour. The cycle is fully automatic for ease of use. The built-in detergent and rinse chemical pumps also make the warewasher easy to operate. The triple filtering protection system captures excess soil and debris, preventing them from recirculating over the dishes. The pump drain allows for multiple installation applications, including elevated drains. The door and water level safety switches, plus booster thermostat, give you optimal performance and safety.

The double skin stainless steel provides consistent heating and quiet operation. The operator-friendly, removable, stainless steel wash and rinse arms allow for easy cleaning. The stainless steel safety filters protect the washing pump to prevent corrosion and damage. The stainless steel molded rack supports, polished stainless steel surfaces and tanks with rounded corners further provide the user with easy cleaning. Rounded corners in the dishmachine make cleaning easier. Top-mounted controls on the CMA UC50E high-temp undercounter dishwasher are easy to read and use.

Product Details

• Washes up to 30 racks per hr.
• Cycle is fully automatic for easy operation
• Built-in detergent and rinse chemical pumps
• Pump drain gives you man installation options; no floor drain is required
• Safety Temp feature ensures the sanitizing rinse is 180 degrees F each cycle
• 6 kW wash tank heater
• Double skin stainless steel provides consistent heating and quiet operation
• Uses 0.8 gal. of water per rack
• Door and water level safety switches
• Booster safety thermostat
• Stainless steel safety filters protect the wash pump
• Rounded corners make cleaning easier
• Wash and rinse arms are easily removable for cleaning or replacing
• Triple filtering protection system collects excess soil and debris to prevent it from recirculating over dishes
• Top-mounted controls are easy to use and read

Dimensions & Utilities

• 23⁷⁄₁₆ in. W x 24 in. D x 33⁵⁄₈ in. H
• ³⁄₄ HP, 2.7-6.53 kW, 28 A
• 208 V/60 Hz/1 ph



CMA Dishmachines UC50E Specifications

Spec Attribute	Spec Value
Manufacturer	CMA Dishmachines
Depth (in)	24
Design	Rack
Drain Type	Pump
For Use With	Dish and Glass
Height (in)	33.31
Hertz	60
Racks per Hour	30
Special Features	Dual Wash Arms
Special Features	Low Water Usage
Special Features	Built in Booster
Type	High Temp
Voltage	208
Warranty	1-year Limited Parts & Labor
Width (in)	23.44
Glasses per hour	1080
Phase	1
Rating	Better
Product	Dishwashers
Product Type	Dishwashing Equipment & Supplies
Cycle Period	2 min
Water Inlet (in)	3/4
Weight	234.00
