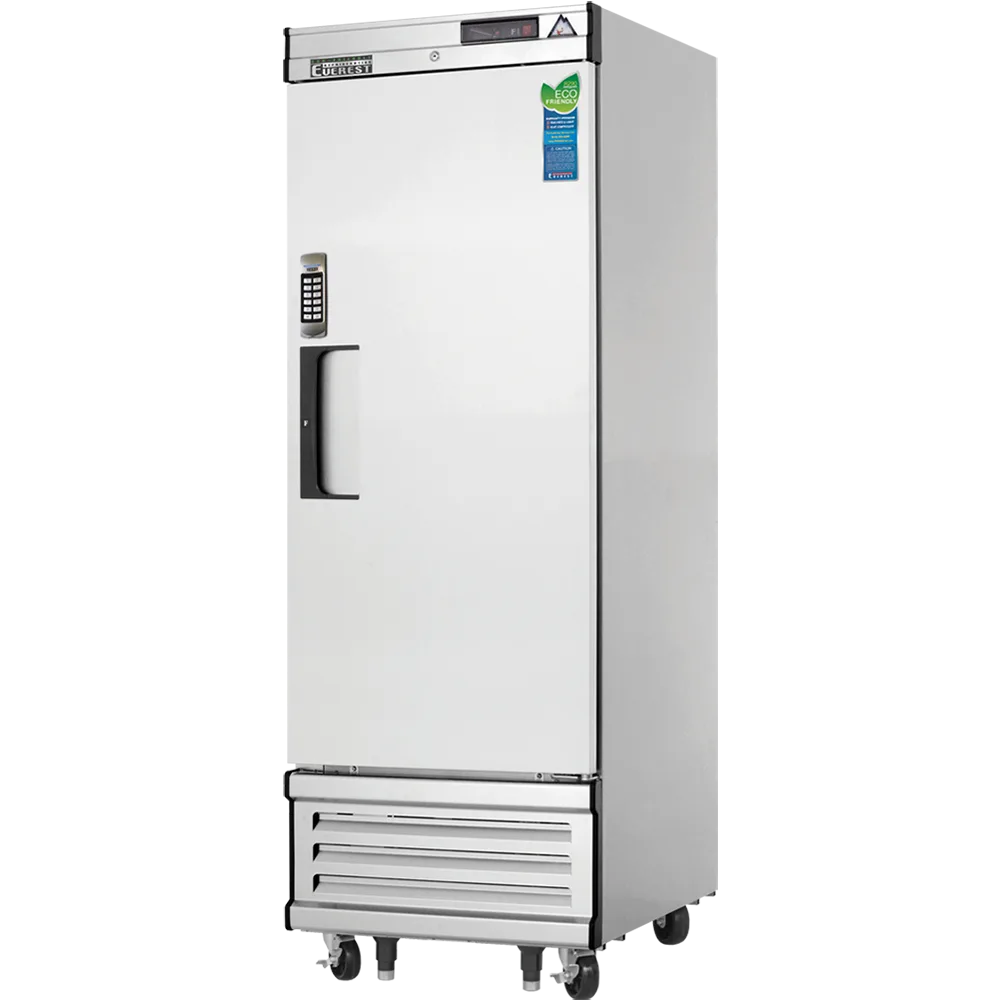

Everest Refrigeration EBWF1-LAB 29″ One Section Medical Freezer w/ 1 Solid Full Door, 23 cu. ft.

Refrigeration System

• Bottom mounted, self-contained and fully detachable Blizzard R290 condensing unit uses environmentally friendly, EPA-compliant R290 refrigerant with zero (0) Ozone Depletion Potential (ODP) and three (3) Global Warming Potential (GWP). Blizzard R290 is easily replaceable and requires no on-site brazing.
• Inverter compressors offer consistent cooling, accurate temperature control, and up to 20% less energy usage.
• Electronically commutated (ECM) fan motors achieve rapid cooling with less energy consumption.
• Glycol-filled temperature probe ensures accurate temperature readings.
• Full-length air duct and airflow guard ensure optimal cold air circulation.
• Air circulation guard keeps floor vents from obstruction.
• Time-initiated and temperature-terminated auto defrost heater.
• Large capacity, corrosion-resistant condenser and evaporator coils.
• Self-maintaining, energy-efficient condensate drain pan requires no external drains or electric heaters.
• High performance, auto-reverse condenser fan motor supports compressor ventilation and condenser coil cleaning.
• Pressure relief devices allow rapid cabinet re-entry.
• Pre-wired and ready to plug, 115V/60Hz/1Ph, NEMA 5-20P.

Cabinet Construction

• Heavy duty stainless steel interior / exterior with rounded corners for a hazard-free workspace.
• Open spaced interior with no walls between compartments.
• Galvanized steel top, bottom and rear.
• 2.5″ thick high density polyurethane insulation.
• Deeper cabinet interior for more storage options.
• Four 5″ swivel casters with locks on front set.
• Leg stabilizers standard for all models (does not apply to ETBF1-LAB).

Lighting

• Energy efficient silicone coated and shatter-proof LED lighting provides bright, high color illumination with low heat output.

Doors

• Pre-installed electronic keypad lock with auto-lock feature.
• Heavy duty stainless steel interior / exterior.
• 2.5″ thick high density polyurethane insulation.
• Frame heaters prevent exterior moisture build up.
• Self-closing with adjustable torsion system for a positive seal.
• Snap-in magnetic gasket for ease of cleaning.
• High strength, recessed handles.
• Field reversible.

Shelving

• Three epoxy coated, steel wire shelves per section.
• Height adjustable stainless steel clips.

Temperature Control

• Multi-function digital controller with easy to read LED display.
• Factory preset temperature, -4?F. Temp-set range from -10?F to 54?F.
• Audible overheat protection alarm for compressor and condenser coil.

From The Manufacturer

Laboratory Freezer, one-section, 29-1/4″W, 23.0 cu. ft. capacity, self-contained bottom mounted refrigeration, (1) wide full-height solid hinged self-closing door with electronic keypad lock, (3) epoxy coated wire shelves, height adjustable clips, digital controls with LED display, auto defrost, LED interior lighting, stainless steel interior, stainless steel front & sides, galvanized steel top, bottom & rear, (2) leg stabilizers, (4) 5″ swivel casters (2 locking), 1/2 HP inverter compressor, 115v/60/1-ph, 1.6 amps, cord, NEMA 5-15P, cETLus, ETL-Sanitation
