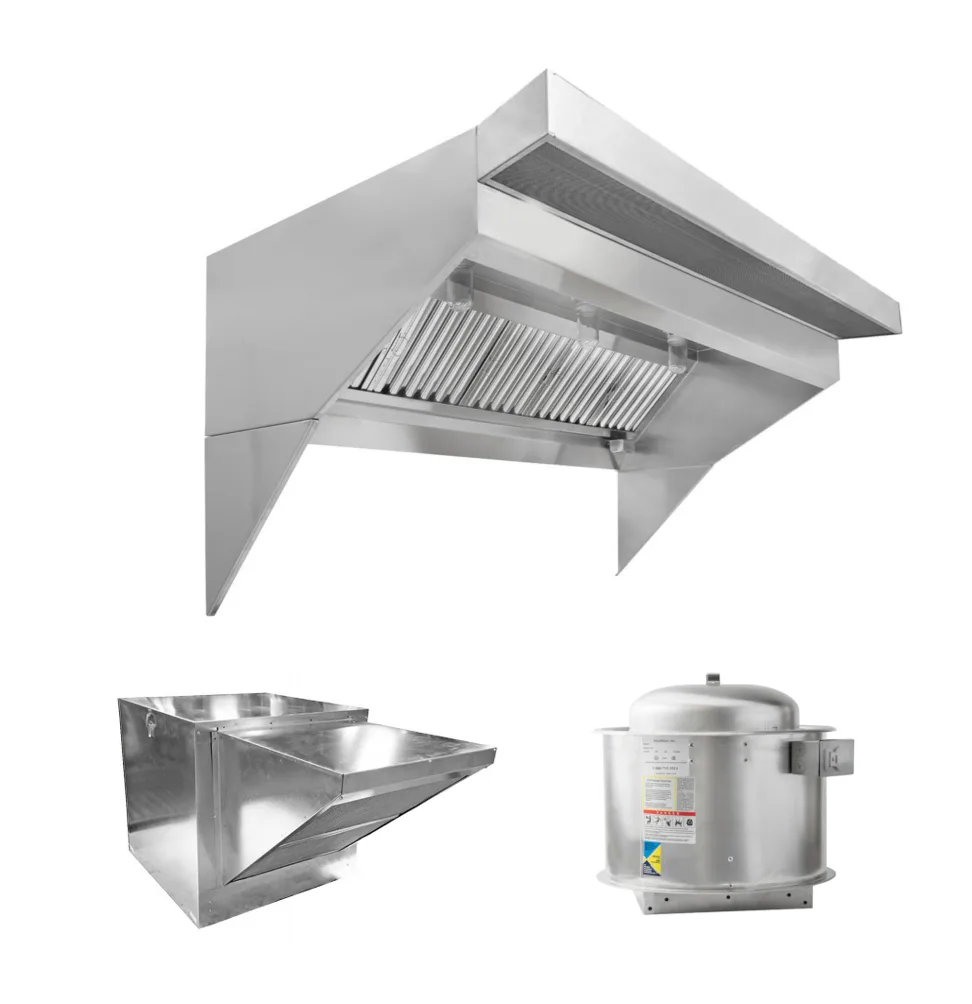

Naks Low Ceiling Sloped Front Restaurant Hood System w/PSP Makeup Air 6’ x 48”

"You've found the perfect restaurant makeup air hood. The Naks SUPPORT Team will answer ALL your exhaust hood questions and remove fear or confusion about your commercial kitchen ventilation needs. This Naks Make-Up hood system is a Type 1, Wall Canopy Hood that includes a PSP (Perforated Supply Plenum) and Guaranteed To Pass ALL City & State Codes. Quality Hoods You Can Trust, Quick Delivery... NSF, UL, NFPA & ETL APPROVED! Designed for use over cooking surface temperatures of 450, 600, 700 degrees. Naks offers an optional low profile hood to accomodate low ceiling applications."

Your 6’ x 48” Low Ceiling Sloped Front Wall Canopy Hood Package w/Makeup Air Include:

• Exhaust Fan (1pc) 20D, 1500 CFM, 115V
• Supply Fan (1pc) Fresh Air SF5, 1200 CFM
• Mounting Curb Wall / Roof (2pcs)
• Stainless Steel UL listed Grease Baffle Filters
• Pre-Wired Light(s)
• Stainless Grease Cup(s)
• Hanging Brackets
• Built in 3" Air Gap
• PSP (Perforated Supply Plenum)

See more on Pinterest...

Restaurant Hood System w/ PSP Makeup-Air 5'x48" Features

• "6 x 48 Hood System w/PSP (Perforated Supply Plenum Constructed with 18 Gauge 430 SS
• Built in 3"" Air Gap on back of hood
• Made in USA
• Optional Low Profile Hood style available
• All hoods are UL Listed to Ansi/UL 710, and CAN/ULCAll hoods are built in accordance to NFPA 96, NSF specifications, & U.L. 710 specifications"
• Zero Clearance models available
• 2 Year Warranty

Makeup-Air Hoods - Overview

"Our Type 1 Hood is designed for use over cooking equipment to remove heat, smoke and grease laden vapors. The make-up air hood with PSP (Perforated Supply Plenum) allows you to use a fresh air fan or a Heated (Tempered) make-up air fan. Naks offers heating and cooling makeup air options if required. Naks Tempered MUA units are complete in every aspect, with all necessary gas and electrical controls included. Attractive standard features as well as numerous options and accessories insure maximum design flexibility and application versatility. Airflow rates from 800 to 13,000 CFMs with fresh air heated by either Natural or LP gas. Evaporative Cooling and Heat/Cool combination units are available. Naks manufactures commercial kitchen makeup air hoods to work for all kitchen applications with the customer’s needs and wants in mind. This is why we manufacture a variety of Makeup hood styles: Compensating (Short Cycle), Perforated Supply Plenum PSP, Back Return Supply Plenum BSP, and you can even use an Exhaust option with using diffusers in the ceiling."
