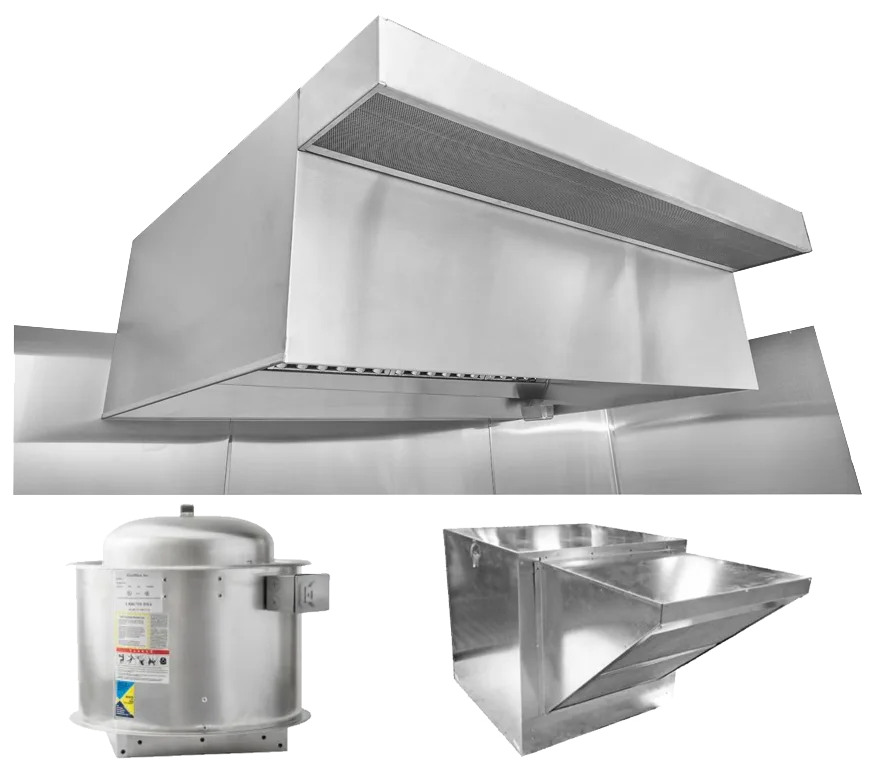

Naks Restaurant 19 FT Hood System w/ PSP Makeup-Air

You've found the perfect restaurant makeup air hood. The Naks SUPPORT Team will answer ALL your exhaust hood questions and remove fear or confusion about your commercial kitchen ventilation needs. This Make-Up hood system is a Type 1, Wall Canopy Hood that includes a PSP (Perforated Supply Plenum) and Guaranteed To Pass ALL City & State Codes. Quality Hoods You Can Trust, Quick Delivery... NSF, UL, NFPA & ETL APPROVED! Designed for use over cooking surface temperatures of 450, 600, 700 degrees.

Your Restaurant Hood System w/ PSP Makeup-Air Package Include:

• Exhaust Fan (1pc) 52B, 4750 CFM, 115V
• Supply Fan (1pc) Fresh Air SF10, 3800 CFM
• Mounting Curb Wall / Roof (2pcs)
• Stainless Steel UL listed Grease Baffle Filters
• Pre-Wired Light(s)
• Stainless Grease Cup(s)
• Hanging Brackets
• Built in 3" Air Gap
• PSP (Perforated Supply Plenum)

See more on Pinterest...

Restaurant Hood System w/ PSP Makeup-Air Features

• 19 FT Hood System w/PSP (Perforated Supply Plenum Constructed with 18 Gauge 430 SS)
• Built in 3" Air Gap on back of hood
• Made in USA
• Optional Low Profile Hood style available
• Zero Clearance models available
• All hoods are UL Listed to Ansi/UL 710, and CAN/ULCAll hoods are built in accordance to NFPA 96, NSF specifications, & U.L. 710 specifications
• 2 Year Warranty

Makeup-Air Hoods - Overview

Our Type 1 Hood is designed for use over cooking equipment to remove heat, smoke and grease laden vapors. The make-up air hood with PSP (Perforated Supply Plenum) allows you to use a fresh air fan or a Heated (Tempered) make-up air fan. Naks offers an optional low profile hood to accomodate low ceiling applications.
