The image above may not exactly represent the product
SKU STC-BN37R
Structural Concepts BN37R 35 5/8″ Oasis® Vertical Open Air Cooler w/ (5) Levels, 208-240v
Structural Concepts BN37R Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Structural Concepts |
| Color | Black |
| Compressor Type | Self Contained |
| Depth (in) | 26.25 |
| Design | Vertical |
| Height (in) | 82.25 |
| Hertz | 60 |
| NEMA | 6-15P |
| NEMA | L6-15P |
| Number of Levels | 5 |
| Phase | 1 |
| Product | Open Air Merchandisers |
| Product Type | Commercial Refrigeration |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Oasis® |
| Special Features | Black Interior |
| Special Features | Casters Included – Installed |
| Special Features | LED Lighting |
| Voltage | 208/240 |
| Warranty | 1-year Limited Parts & Labor; 5-year Compressor |
| Width (in) | 35.63 |
| Weight | 800.00 |
Questions about this item? Call (833) 345-2433 or — real specialists, Mon–Fri 8am–4pm CT.
In stock — ships in 3–5 business days
Ships direct from the manufacturer’s warehouse · curbside freight
1-year parts & labor warranty
Backed by the manufacturer. Our specialists handle claims for you.
30-day returns · no restocking fee on our error
Freight damage? We file the claim. Read our promise →
Authorized Structural Concepts Dealer
1-year parts & labor warranty · Shop all Structural Concepts →
Categories: Refrigeration, Open Air Merchandiser Coolers
Structural Concepts BN37R Description

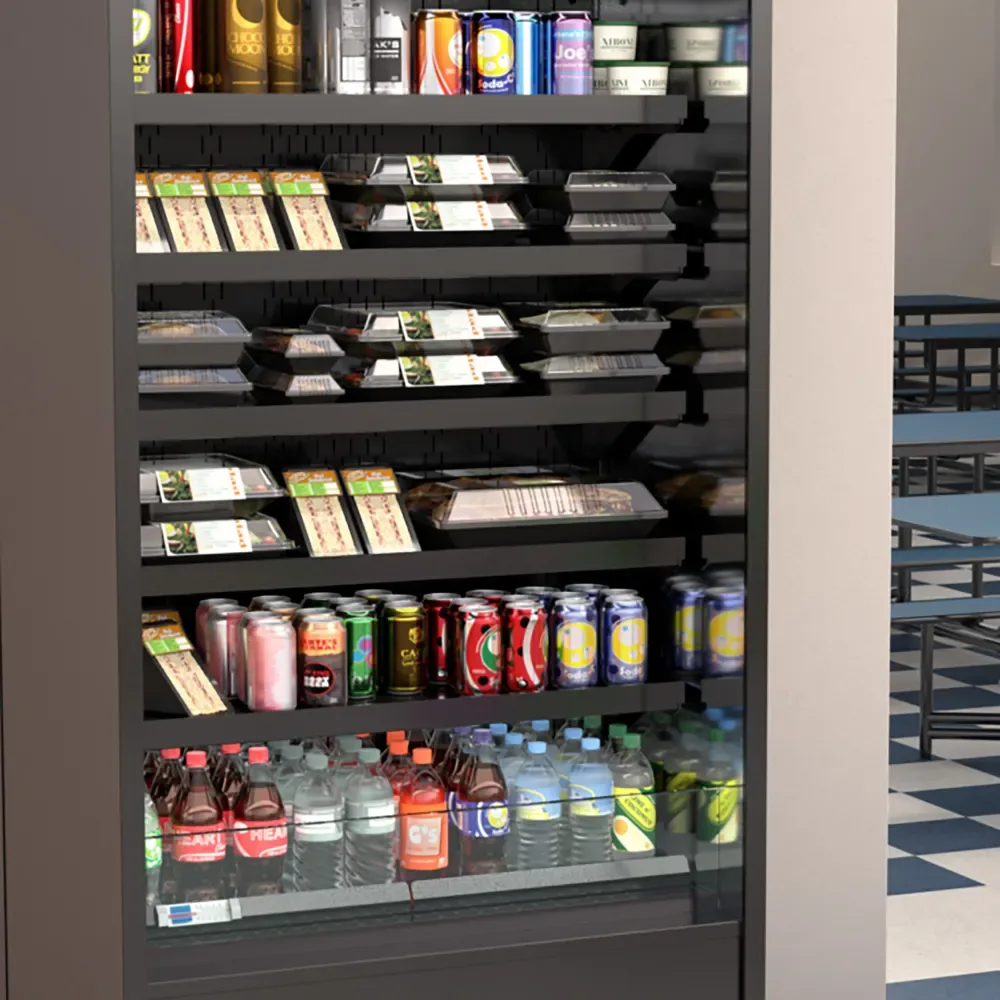

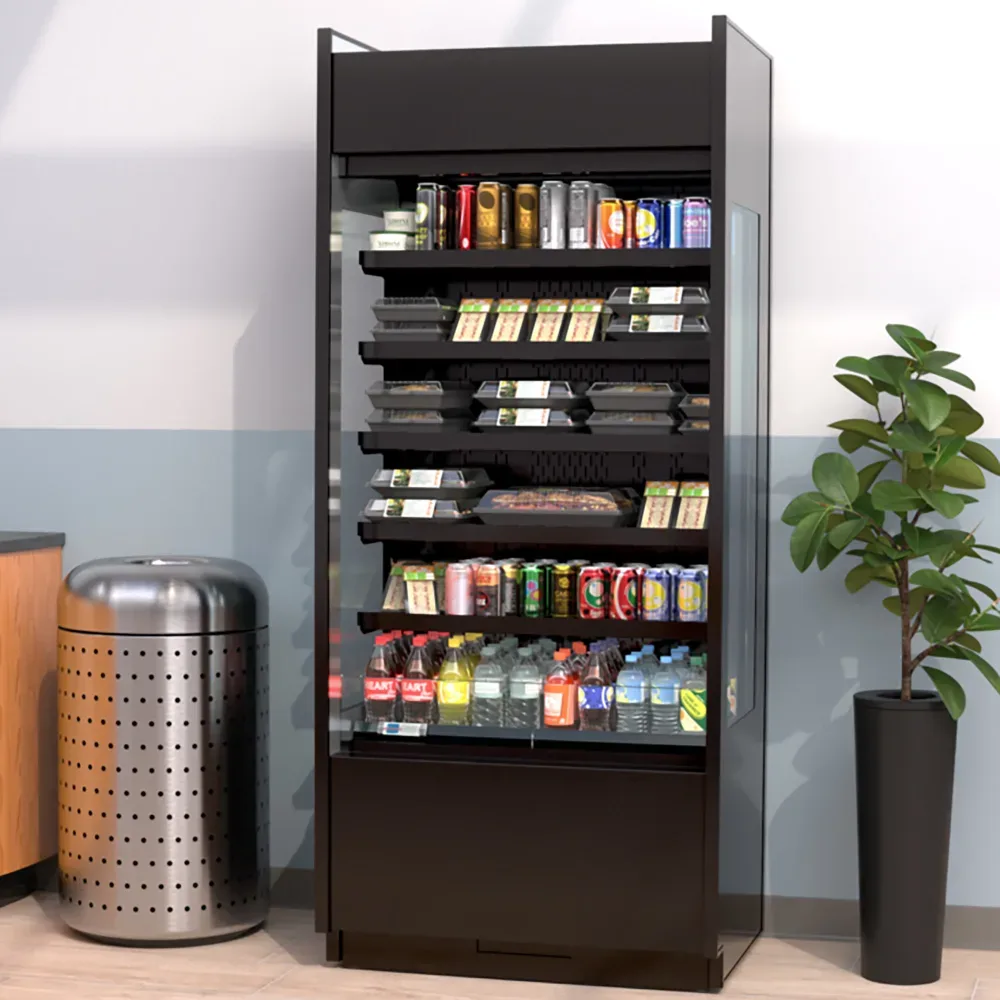

The Structural Concepts BN37R Oasis® vertical open air cooler integrates advanced refrigeration for steady cooling in compact service areas. Its Breeze~E bottom-mounted compressor maintains airflow consistency across five display levels, and rear discharge vents support uniform temperature control. An integrated condensate pan collects moisture effectively, while the E-coated evaporator enhances cooling reliability for long-term performance.
Easy mobility and stability define the Structural Concepts BN37R Oasis vertical open air cooler with four heavy-duty casters for effortless movement. Built-in levelers stabilize the 82-inch frame on uneven flooring, and a 2 5⁄8-inch recessed toe kick improves clearance during use. The reinforced base prevents tipping, providing balance and confidence during frequent repositioning and product rotation.
Product Details
- Oasis Series
- 1,812 BTUH cooling capacity
- Vertical open-air self-service case
- For packaged refrigerated products
- Type II unit operates in 80 degrees F ambient / 55% RH environment
- 5 display levels including base deck
- 4 non-lighted metal shelves
- One-piece ABS plastic tub interior
- LED top lighting (4000 K color temperature)
- Full end panels with mirrored stainless interior
- Black powder-coated Silversan exterior and interior finish
- Adjustable casters with levelers installed
- 2 5⁄8-in. recessed toe kick
- 21 5⁄8 in. doorway clearance minimum for unit entry
- Breeze~E Type-II self-contained, bottom-mounted
- R290 hydrocarbon refrigerant
- E-coated evaporator coil
- Integrated condensate pan
- Magnetic air filter
- Compressor air intake at lower front with rear discharge
- Rear-access compressor compartment
- Maintains 40 degrees F or less product temperature
- Overall: 35 5⁄8 in. W × 26 1⁄4 in. D × 82 1⁄4 in. H
- 10.99 A, 1.81 kW, 1⁄2 HP
- 208–240 V / 60 Hz / 1 ph, 6-ft. power cord with NEMA 6-15P or L6-15P plug
*Free shipping on Structural Concepts BN37R within the 48 contiguous states.
From The Manufacturer
Oasis® Refrigerated Self-Service Case, 35-5/8″W x 26-1/4″D x 82-1/4″H, Warmest average product temperature of 40°F or less, LED top light, (4) metal shelves, Breeze with self-contained refrigeration, condensate pan, magnetic air filter, non-locking casters with levelers, end panels with mirrored stainless interior, black exterior, R290 Hydrocarbon refrigerant, cETLus, ETL-Sanitation
