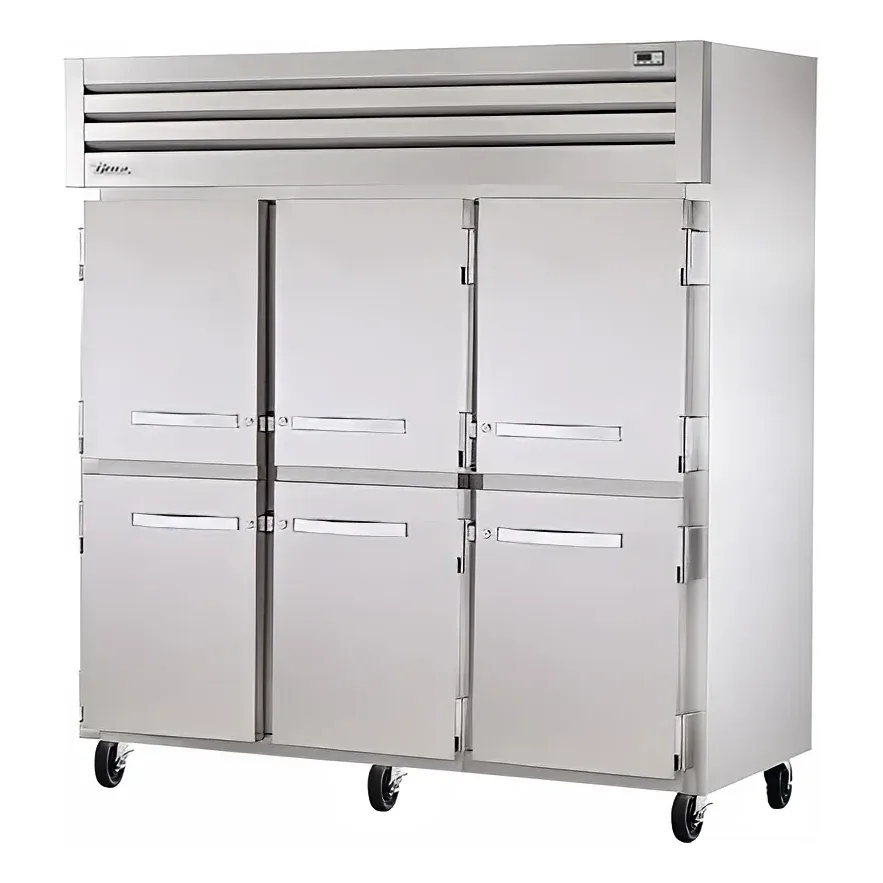

True   78″ Three Section Reach In Freezer, (6) Solid Door, 208 230v/1ph

The True STG3F-6HS-HC Spec Series® three-section reach-in freezer comes with nine PVC-coated wire shelves that enable air to flow through gaps and evenly cool stored items. In the cabinet, LED lighting shines to enhance visibility, and the unit’s aluminum and stainless steel construction provides durability and simplifies cleaning. It has six solid half doors that release less cold air than full doors since they are smaller. The doors have a self-closing design and stay open past 120 degrees when employees are stocking the cabinet.

The refrigeration system in the True STG3F-6HS-HC three-section reach-in freezer is top mounted; this position increases interior space and prevents the components from pulling in floor debris. The system uses R290 refrigerant to hold the temperature at -10 degrees Fahrenheit. Users can monitor the temperature on the external display, ensuring the unit is operating at a safe level. Ice will build up on the evaporator, so an automatic defrost system melts the frost. These cycles begin with a timer and end when an ideal temperature is reached.

Product Details

• Part of the Spec Series
• 9 durable, PVC-coated wire shelves
• LED lighting shines in the cabinet
• Aluminum interior sides and back resist corrosion and scratches
• Stainless steel interior floor and ceiling facilitate cleaning
• 6 solid, stainless steel half doors release less cold air than full doors
• Self-closing doors stay open past 120 degrees
• Doors can be locked to prevent theft
• Aluminum exterior sides match the stainless steel front
• Cabinet insulation is foamed in place for cold air retention
• 5-in. castors with locking front set

Top-mount Refrigeration System

• Temperature holding range: -10 degrees F
• Exterior temperature display in Fahrenheit or Celsius
• Uses R290 refrigerant
• Electronically commutated fan motors move a consistent volume of air with little energy use and heat production
• Maximizes interior space with top-mounted placement
• Automatic defrost system is time initiated and temperature terminated

Dimensions & Utilities

• 77³⁄₄ in. W x 35¹⁄₄ in. D x 84¹⁄₈ in. H
• 8.3 A, 2³⁄₄ HP
• 208-230 V/60 Hz/1 ph, 9-ft. cord with a NEMA 6-15P plug

Manufacturer	True Refrigeration
Amps	8.3
Color	Silver
Compressor Location	Top
Depth (in)	35.22
Door Design	Half
Door Type	Solid
Exterior Construction	Stainless Steel
Height (in)	84.13
Hertz	60
Interior Construction	Aluminum
Sections	3
Supports	Casters
Thermometer Type	Digital
Type	Reach In
Voltage	208/230
Warranty	7-year Parts & Labor; 7-year Compressor
Width (in)	77.75
Series	Spec Series®
Refrigerant	R290 (Hydrocarbon)
Phase	1
Rating	Spec
Product	Reach-In Freezers
Product Type	Commercial Refrigeration
NEMA	6-15P
Hinge Configuration	Left/Right
Weight	1005.00
