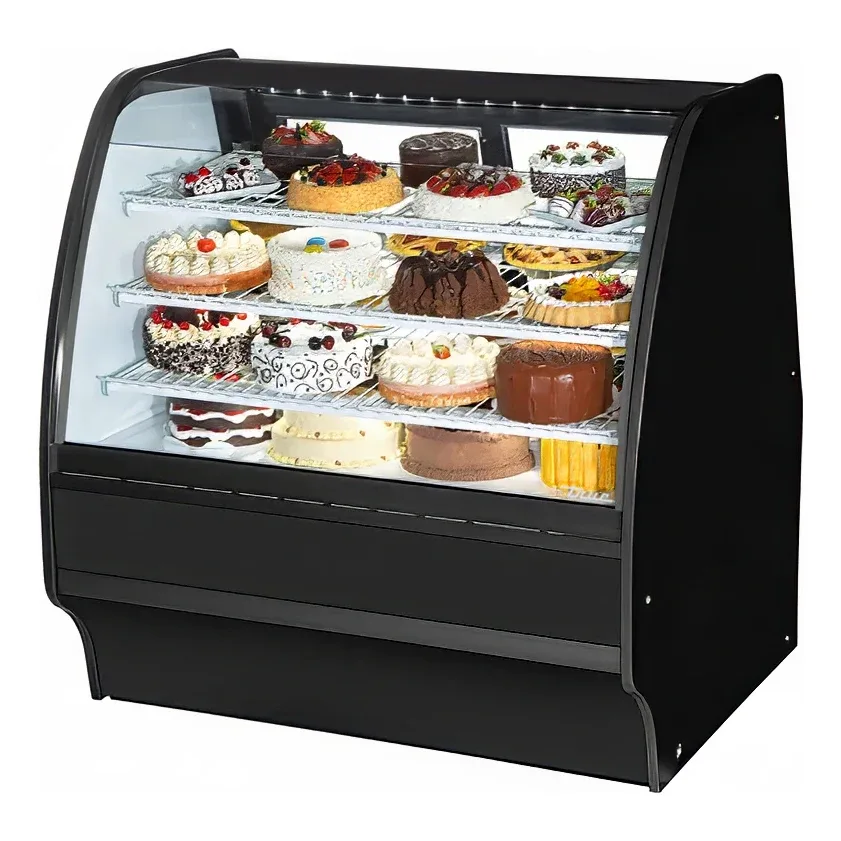

True    48 1/4″ Full Service Bakery Case w/ Curved Glass – (4) Levels, 115v

To hold cheesecakes, pies, mousses, and cakes at temperatures between 33 and 41 degrees Fahrenheit, the True TGM-R-48-SC/SC-B-W glass merchandiser is built with a self-contained refrigeration system that operates with environmentally friendly R290 hydrocarbon refrigerant. As inventory changes, users can adjust the interior temperature using the electronic temperature control, and to preserve generated temperatures, high-density polyurethane insulation is built into the cabinet. The refrigeration system’s condenser fan motors reverse during defrost off cycles to remove dirt, dust, and debris from the condenser coil for an enhanced performance. So operators can access the condensing out for cleaning and maintenance, it can be slid out, and the evaporator is coated with epoxy for corrosion resistance.

The bakery case’s interior features three shelving tiers comprised of six adjustable, heavy-duty PVC-coated wire cantilever shelves. Each shelf can support 150 pounds, and for flexibility, the cabinet can support four 18-inch-long by 26-inch-wide display pans, two 9-inch-long by 26-inch-wide display pans, and six 12-inch-long by 18-inch-wide display pans (sold separately). The shelves and interior both feature a white powder coating to establish a neutral background against displayed products. While the curved tempered glass front maximizes interior visibility, LED lighting illuminates the case to enhance presentation.

The TGM-R-48-SC/SC-B-W dessert case is a full-service unit, meaning employees must retrieve purchases from the back of the unit. Its two rear sliding glass doors are built with 12-inch-long aluminum handles to ease opening and closing when loading or removing inventory. To tie into common bakery themes, this 48¹⁄₄-inch-wide by 39-inch-deep by 49¹⁄₈-inch-tall unit sports a black powder-coated rounded front and back, solid wood sides with aluminum covers, and front panels. For added strength, it’s built with a welded, corrosion-resistant black powder-coated steel frame rail.

Product Details

• Cabinet capacity: (4) 18-in. x 26-in. display pans, (2) 9-in. x 26-in. display pans, and (6) 12-in. x 18-in. display pans
• Full-service configuration
• 3 shelving tiers comprised of 6 total adjustable cantilever wire shelves
• Each shelf can support 150 lbs.
• White powder-coated cold-rolled steel interior
• Interior illuminated with LED lighting
• Curved tempered glass front
• Side glass panels
• Black powder-coated rounded front and back
• Aluminum cover over solid wood sides
• Front panels
• 2 rear sliding glass doors with 12-in.-long aluminum handles
• High-density, foamed-in-place polyurethane insulation
• Welded, heavy-duty steel frame rail finished with corrosion-resistant black powder coating
• Frame rail built with leg levelers

Refrigeration System

• Self-contained
• Environmentally friendly R290 hydrocarbon refrigerant
• Operating temperature range: 33-41 degrees F
• Electronic temperature control
• Reversing condenser fan motors minimize debris, dust, and dirt buildup on coil
• Pull-out condensing unit eases cleaning and maintenance
• Epoxy-coated evaporator resists corrosion

Dimensions & Utilities

• 48¹⁄₄ in. W x 39 in. D x 49¹⁄₈ in. H
• 12 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-15P plug



Manufacturer	True Refrigeration
Access	Full Service
Color	Black
Depth (in)	39
Design	Curved
Door Type	Sliding
Height (in)	49.13
Hertz	60
Number of Levels	4
Refrigeration Type	Refrigerated
Shelving Type	Wire
Voltage	115
Warranty	6-year Parts; 5-year Labor; 7-year Compressor Parts
Width (in)	48.25
Series	TGMR Series
Refrigerant	R290 (Hydrocarbon)
Rating	Better
Product	Bakery Display Cases
Product Type	Commercial Refrigeration
Weight	685.00
