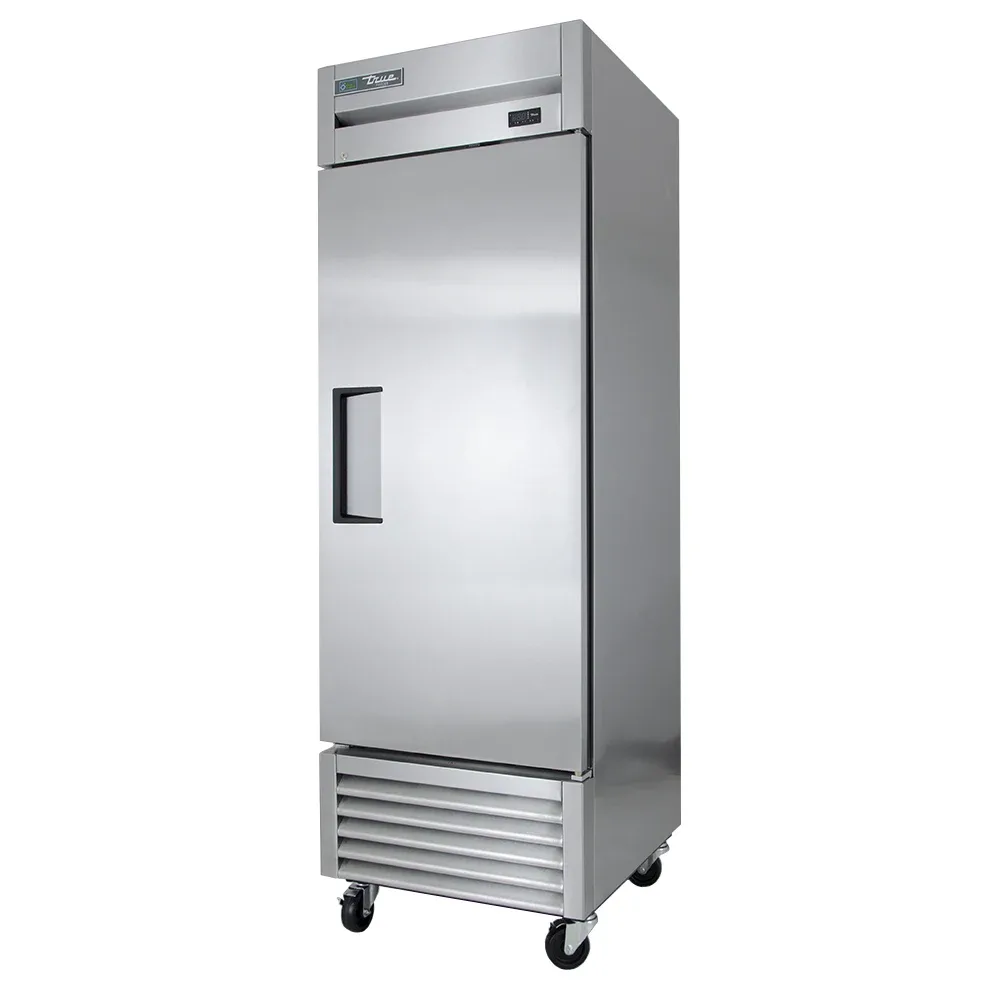

True   27″ One Section Reach In Freezer, (1) Right Hinge Solid Door, 115v

Using R290 hydrocarbon refrigerant in its capillary tube system, the True TS-23F-HC reach-in freezer maintains -10 degrees Fahrenheit, and cold air is evenly distributed throughout the cabinet with electronically commutated condenser and evaporator fan motors. Its automatic defrost system turns on at a certain time and shuts off when the unit reaches a certain temperature, reducing energy consumption while providing the shortest possible defrost cycle.

Blowing dust and debris off the condensing coil, the condenser fan motor in this unit runs in reverse for 20 seconds when it starts up. Keeping this coil clean encourages efficient operation, reduces energy use, and keeps temperatures in the cabinet cold and consistent. Despite the numerous benefits of this self-cleaning, it doesn’t eliminate the need to perform routine preventative maintenance.

Made of stainless steel, the solid door and front are quick to wipe down and resist dents, scratches, and dirt. This one-section reach-in freezer has three heavy-duty, PVC-coated shelves that hold product and a positive seal, self-closing door with lifetime guaranteed hinges and a torsion type closure system for convenient access. Ideal for warm environments, the True TS-23F-HC reach-in freezer has a bottom-mounted refrigeration system that is kept away from hot areas because warm air rises.

Product Details

• Uses R290 hydrocarbon refrigerant
• Maintained operating temperature: -10 degrees F
• Little heat is created by the electronically commutated evaporator fan motors with large blades that create low-velocity, high-volume airflow
• Fan motor reverses for 20 seconds at start up to blow dust off condenser coil
• Lowest shelf is slightly lifted so products are comfortable to reach
• Minimal maintenance is needed because the defrost system is automatic
• Evaporator resists corrosion with epoxy coating
• Temperatures are digitally displayed for straightforward monitoring
• Airflow is kept from being blocked by airflow guards
• 3 PVC-coated wire shelves are adjustable in ¹⁄₂-in. increments to accommodate various product sizes
• Interior lights are activated by a rocker switch

Cabinet Construction

• Corrosion-resistant, durable stainless steel exterior
• Quick-to-clean interior is made of stainless steel
• Cold air stays in the cabinet with foamed-in-place polyurethane insulation
• Cabinet is stable because it has a heavy-duty, black powder-coated steel frame
• Single, solid stainless steel door
• Products are kept safe with standard door locks
• 12-in. recessed handle facilitates opening the doors because it is permanently attached
• Cold air is kept inside with magnetic door gaskets
• 4-in.-diameter castors ensure the unit is convenient to move

Dimensions & Utilities

• Shelves: 22⁷⁄₈ in. W x 23¹⁄₄ in. D
• Overall: 27 in. W x 29¹⁄₂ in. D x 83⁵⁄₁₆ in. H
• 3.7 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug



Manufacturer	True Refrigeration
Compressor Location	Bottom
Cubic Feet	20.8
Depth (in)	29.5
Door Design	Full
Door Type	Solid
Height (in)	83.38
Hertz	60
Interior Material	Stainless Steel
Sections	1
Type	Reach In
Warranty	7-year Parts & Labor; 7-year Compressor
Width (in)	27
Refrigerant	R290 (Hydrocarbon)
Phase	1
Rating	Best
Product	Reach-In Freezers
Product Type	Commercial Refrigeration
NEMA	5-15P
Hinge Configuration	Right
Weight	310.00
