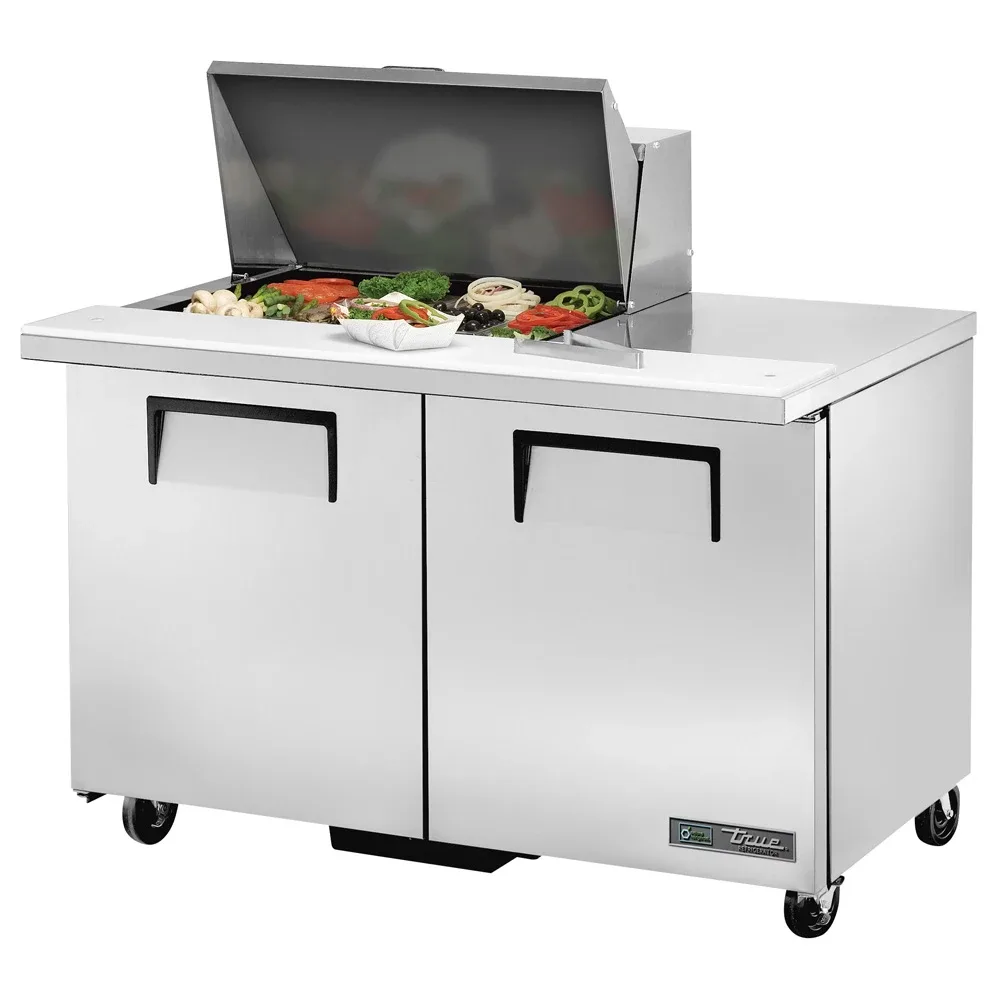

True   48″ TSSU Series Mega Top Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

The True TSSU-48-12M-B-HC prep table includes 12 sixth-size polycarbonate food pans to hold salad and sandwich ingredients. Temperatures are kept constant around the pans with a forced air system powered by a cast iron, self-lubricating evaporator fan motor. This unit keeps foods at a safe temperature from 33 to 41 degrees Fahrenheit. To create an airtight seal, both doors have magnetic gaskets.

Using a reverse condensing fan motor, dirt and dust buildup is removed from the condensing coil. Each time the compressor starts, the fan motor reverses automatically, improving product temperatures and reducing energy use by keeping the coil clean. For ideal results, preventative maintenance should be implemented regularly.

The True TSSU-48-12M-B-HC food prep table achieves quick temperature recovery with a factory-balanced capillary tube system. This unit uses environmentally friendly R290 hydrocarbon refrigerant to chill product resting on four PVC-coated wire shelves. An 8⁷⁄₈-inch-deep cutting board provides space to prepare salads, sandwiches, and ingredients. This unit comes with 12 sixth-size food pans.

Product Details

• Temperature range: 33-41 degrees F
• Capillary tube system provides uniform, efficient cooling using R290 hydrocarbon refrigerant
• Sealed, cast iron evaporator fan motor and large fan blades circulate airflow through the cabinet for even temperatures
• Condensing fan motor blows excess dust and debris off the condensing coil
• Condensing unit is accessible through the back of the equipment cabinet
• Cabinet exterior includes a stainless steel front, top, and ends
• Clear-coated aluminum lines the cabinet interior
• Cabinet is insulated with foamed-in-place polyurethane
• Aluminum exterior back matches the stainless components
• 5-in. stem castors enable the unit to be wheeled into place
• Doors are finished with stainless fronts and aluminum interiors
• Door handles measure 12 in. long and are foamed in place
• Self-closing doors will stay open past 90 degrees
• Magnetic door gaskets can be removed without tools
• ¹⁄₂-in.-thick, 8⁷⁄₈-in.-deep polyethylene cutting board runs the length of the equipment
• Foam-insulated lid keeps food fresh

Customizable Shelving and Food Pan Holding

• 4 gray PVC-coated shelves are adjustable on ¹⁄₂-in. increments
• 12 sixth-size pans are included for holding sandwich and salad ingredients
• Equipment can accommodate many pan sizes in multiple configurations with adapter bars (bars and additional pans are sold separately)

Dimensions & Utilities

• Pan size: 6⁷⁄₈ in. L x 6¹⁄₄ in. W x 4 in. D
• Shelves: 21⁹⁄₁₆ in. W x 16 in. D
• Overall: 48³⁄₈ in. L x 35¹⁄₈ in. D x 46⁵⁄₈ in. H
• 5.8 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 11-ft. cord with a NEMA 5-15P plug



Manufacturer	True Refrigeration
Cutting Board Depth (in)	8.88
Depth (in)	35.13
Front Access	Door
Height (in)	46.63
Hertz	60
Special Features	Extended Countertop
Special Features	Work Space
Type	Mega Top
Use	Sandwich/Salad
Voltage	115
Warranty	7-year Parts & Labor; 7-year Compressor
Width (in)	48.38
Series	TSSU Series
Refrigerant	R290 (Hydrocarbon)
No. of Doors	2
Phase	1
Rating	Better
Product	Prep Tables
Product Type	Commercial Refrigeration
NEMA	5-15P
Max Pan Depth (in)	6
Weight	325.00
