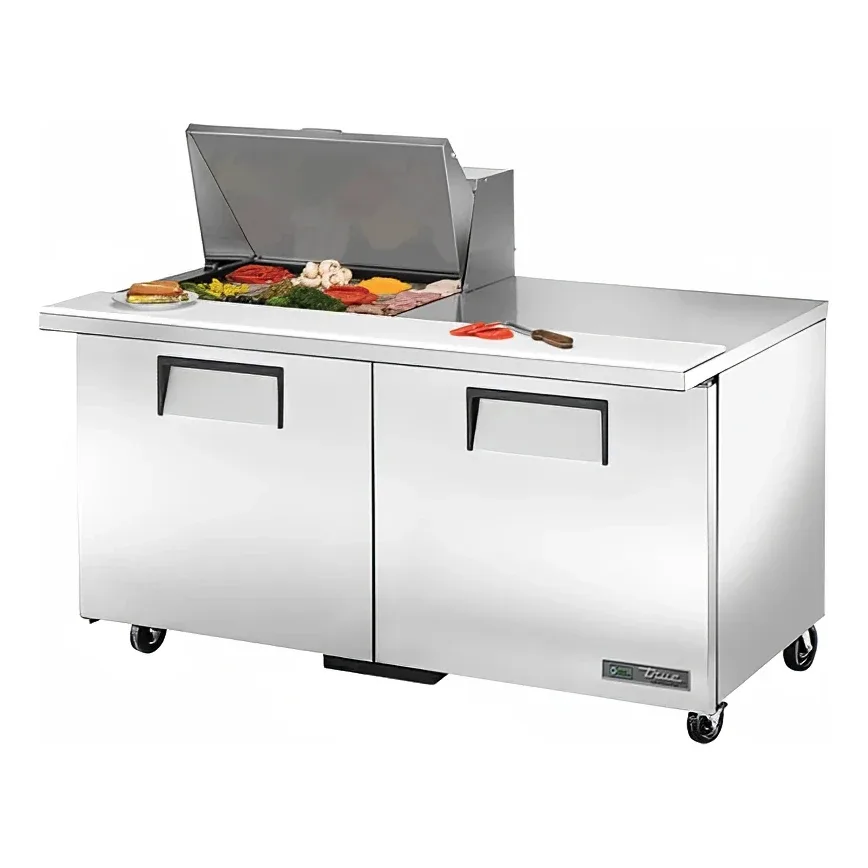

True   60″ TSSU Series Mega Top Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

This True TSSU-60-12M-B-HC mega-top prep table is 60 inches wide and has a cutout with room for 12 sixth-size food pans on the left side of the countertop. The included food pans are constructed of break-resistant, clear polycarbonate, and an insulated hood and lid positioned over the pans keeps ingredients cool and reduces condensation. Because the right side of the table is open, it can hold additional sauces, supplies, and equipment, while the front hosts a cutting board for preparing salads and sandwiches. Removable for cleaning, the cutting board has a sanitary, polyethylene construction.

The cabinet base is accessible through two swing doors with sturdy handles that jut inward and do not disturb employees working on the top. To keep cold air inside, the doors have a self-closing design, and their stay-open feature keeps them open when loading and unloading product. Items can be placed on the stainless steel floor and on four PVC-coated shelves. Accommodating various items, these shelves are adjustable in ¹⁄₂-inch increments.

To refrigerate the cabinet interior and top cutout, the True TSSU-60-12M-B-HC prep table moves R290 hydrocarbon refrigerant through its capillary tubes. Cold air is slowly pushed through the cabinet by a large fan, keeping contents cooled at a set temperature from 33 to 41 degrees Fahrenheit that is determined by the user. For cold-air retention, the cabinet is filled with polyurethane insulation, and magnetic gaskets seal the doors.

The fan motor in this unit operates in reverse for 20 seconds each time the compressor starts up, blowing excess dust from the condensing coil. Keeping the condensing coil clean improves the unit’s efficiency to provide better product temperatures. Employees should perform preventative maintenance frequently for best results.

Product Details

• Pan rail on the left and 30²⁷⁄₃₂-in. workspace on the right
• Includes 12 sixth-size, clear polycarbonate food pans
• Foam-insulated hood and lid keep ingredients fresh
• White polyethylene cutting board can be detached for cleaning
• Sheet metal interlocks hold the 12-in. door handles in place permanently
• Magnetic door gaskets can be removed due to 1-piece, snap-in construction
• Clear-coated aluminum interior with a stainless steel floor
• Floor corners are coved so they do not catch debris like sharp corners
• Includes 4 wire shelves that are coated in PVC for strength
• Shelves are adjustable in ¹⁄₂-in. increments
• Stainless steel front, sides, top, hood, and lid are scratch and dent resistant
• Aluminum back has a GalFan-coated finish for corrosion protection
• Cabinet is filled with high-density, foamed-in-place polyurethane insulation
• 5-in. castors provide movement

Self-contained Refrigeration System

• Rear, pull-out condenser ensures convenient service access
• Temperature holding range: 33-41 degrees F
• Uses environmentally friendly R290 hydrocarbon refrigerant
• Epoxy-coated evaporator is corrosion resistant
• Fan motor is sealed and self-lubricating, reducing required maintenance
• Condensing coil cleaned with a reverse condensing fan motor
• Large fan blades blow air through the cabinet slowly

Dimensions & Utilities

• Shelves: 27¹⁄₂ in. W x 16 in. D
• Cutting board: 60⁵⁄₁₆ in. W x 8⁷⁄₈ in. D x ¹⁄₂ in. H
• Sixth-size food pans: 6⁷⁄₈ in. L x 6¹⁄₄ in. W x 4 in. D
• Overall: 60⁵⁄₁₆ in. W x 35¹⁄₁₆ in. D x 46¹⁵⁄₃₂ in. H
• 6.5 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug



Manufacturer	True Refrigeration
Cutting Board Depth (in)	8.88
Depth (in)	35.13
Front Access	Door
Height (in)	46.47
Hertz	60
Special Features	Extended Countertop
Type	Mega Top
Use	Sandwich/Salad
Voltage	115
Warranty	7-year Parts & Labor; 7-year Compressor
Width (in)	60.38
Series	TSSU Series
Refrigerant	R290 (Hydrocarbon)
No. of Doors	2
Phase	1
Rating	Better
Product	Prep Tables
Product Type	Commercial Refrigeration
NEMA	5-15P
Max Pan Depth (in)	6
Weight	370.00
