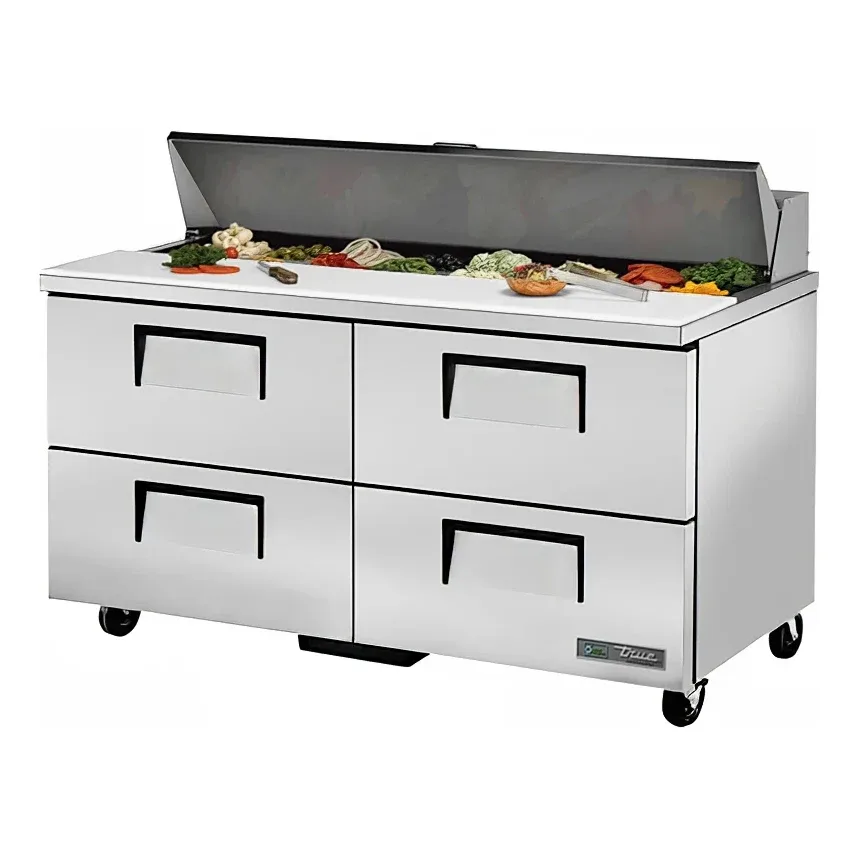

True   60″ TSSU Series Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

Spanning the length of the unit, the True TSSU-60-16D-4-HC food prep table has an 11³⁄₄-inch-deep cutting board that provides space for creating salads and sandwiches. Its top compartment comes with 16 sixth-size food pans, which are made of clear polycarbonate, and it can also accommodate varying size pan configurations with divider bars, although these must be purchased separately. Backup ingredients can be stored in drawers in the refrigerated base.

Set by the operator, the temperature in the base and around the ingredient pans is held between 33 and 41 degrees Fahrenheit. Cold air is guided around the pans and drawers, so temperatures are consistent throughout. Operating with a reverse condensing fan motor, the condensing coil is freed of dirt and dust. Upon compressor start up, the fan cleans the coil by blowing in reverse for 20 seconds. Although this feature is automatic and self-cleaning, employees should still perform maintenance frequently. Mounted on castors, this True TSSU-60-16D-4-HC prep table is mobile, and locks are provided on the front set for stability. The unit has a sturdy stainless steel front, top, and ends, while the steel back is coated in corrosion-resistant GalFan.

Product Details

• Locks provided on front set of 5-in.-diameter stem castors
• Stainless steel front, top, and ends are durable
• Steel back is coated in corrosion-resistant GalFan
• 1 full-size, 12-in. L x 20-in. W x 6-in. D food pan or other pan configurations with divider bars can fit in each drawer (pans and divider bars sold separately)
• Each unit comes with 16 sixth-size, 4-in.-deep food pans and accommodates 6-in.-deep food pans (sold separately)
• Food pans are made of polycarbonate
• Lid and hood are constructed of stainless steel and insulated to keep pan temperatures cold
• Clear-coated aluminum liner and stainless steel floor with coved corners
• 12-in.-long, recessed handle on each drawer is attached by sheet metal interlocks to ensure permanent attachment
• Drawer facings, liners, and frames are constructed of stainless steel
• Removable, magnetic drawer gaskets of 1-piece construction ease cleaning process
• Cabinet structure and drawer facings are foamed in place with dense polyurethane insulation
• Full-length, detachable cutting board is made of high-density, white polyethylene

Refrigeration System

• Temperature holding range: 33-41 degrees F
• Self-contained capillary tube system uses R290 hydrocarbon refrigerant
• Slide-out condensing unit is accessible from cabinet’s back for efficient maintenance
• Epoxy-coated evaporator reduces potential for corrosion
• Low-velocity, high-volume airflow generated by large fan blades
• Guided airflow provides uniform temperatures in cabinet interior and food pans
• Condensing coil’s efficiency increased with a reverse condensing fan motor

Dimensions & Utilities

• Cutting board: 60⁵⁄₁₆ in. W x 11³⁄₄ in. D x ¹⁄₂ in. H
• Sixth-size pans: 6⁷⁄₈ in. L x 6¹⁄₄ in. W x 4 in. D
• Overall: 60⁵⁄₁₆ in. W x 31¹⁄₁₆ in. D x 43 in. H
• 6.5 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug





Manufacturer	True Refrigeration
Cutting Board Depth (in)	11.75
Depth (in)	31.13
Front Access	Drawer
Height (in)	43
Hertz	60
Type	Standard
Use	Sandwich/Salad
Voltage	115
Warranty	7-year Parts & Labor; 7-year Compressor
Width (in)	60.38
Series	TSSU Series
Refrigerant	R290 (Hydrocarbon)
Phase	1
Rating	Better
Product	Prep Tables
Product Type	Commercial Refrigeration
NEMA	5-15P
Max Pan Depth (in)	6
Weight	420.00
