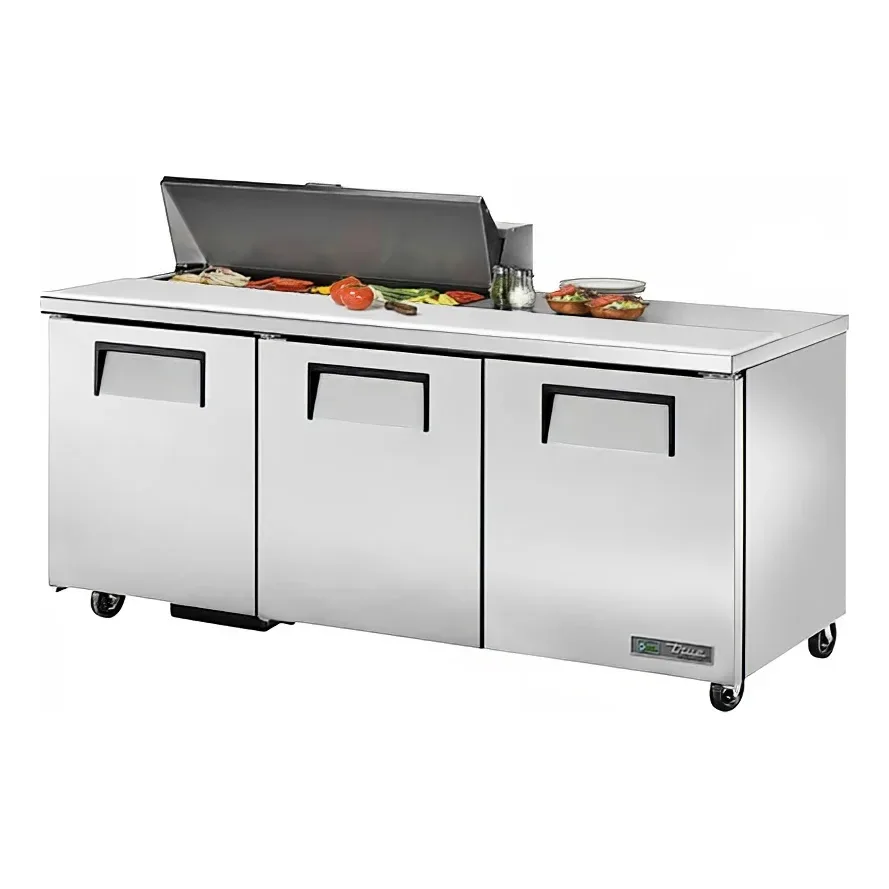

True   72″ TSSU Series Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

The True TSSU-72-10-HC sandwich and salad prep table has a condensing unit that slides out from the back, supporting maintenance. Its self-contained capillary tube system uses environmentally friendly R290 hydrocarbon refrigerant, and the factory-balanced refrigeration system uses guided airflow to provide even temperatures to the cabinet and food pans. Low-velocity, high-volume airflow is created by large fan blades and a sealed evaporator fan motor. This unit can hold steady temperatures between 33 and 41 degrees Fahrenheit.

After the compressor starts, the fan motor reverses direction for 20 seconds to clean the condensing coil. Removing dirt, dust, and debris from the coil helps to extend the unit’s life and provide improved product temperatures. For optimal results, routine preventative maintenance should be implemented frequently.

Product Details

• 10 sixth-size food pans constructed of clear polycarbonate included
• Can accommodate 6-in.-deep food pans (pans sold separately)
• Available pan dividers with varying pan configurations fit countertop pan opening design (pans sold separately)
• Removable, foam-insulated lids and hood constructed of stainless steel
• Exterior stainless steel front, top, and ends and a steel back coated with corrosion resistant GalFan
• Interior with a clear-coated aluminum liner and a stainless steel floor featuring coved corners
• Polyurethane insulated is foamed in place to retain cold air
• Self-closing doors swing within cabinet dimensions and feature a 90-degree, stay-open feature
• Removable magnetic door gaskets of 1-piece construction for quick cleaning
• 12-in.-long, recessed door handles
• 6 adjustable wire shelves coated in corrosion-resistant PVC
• Each shelf includes 4 chrome-plated shelf clips
• 36-in. work surface height

Refrigeration System

• Back of cabinet provides condensing unit access
• Factory engineered capillary tube system uses environmentally friendly R290 hydrocarbon refrigerant
• Temperature holding range: 33-41 degrees F
• Low-velocity, high-volume airflow produced by evaporator fan motor and large fan blades
• Reverse condensing fan motor cleans condensing coil for 20 seconds when the compressor turns on
• Guided airflow creates uniform temperature in cabinet interior and around food pans
• Corrosion potential diminished with epoxy-coated evaporator

Dimensions & Utilities

• Right and left shelves: 21⁹⁄₁₆ in. L x 16 in. D
• Center door shelves: 23¹⁄₂ in. L x 16 in. D
• Overall: 72³⁄₈ in. W x 31¹⁄₈ in. D x 43 in. H
• 7.2 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug



Manufacturer	True Refrigeration
Cutting Board Depth (in)	11.75
Depth (in)	31.13
Front Access	Door
Height (in)	43
Hertz	60
Special Features	Extended Countertop
Type	Standard
Use	Sandwich/Salad
Voltage	115
Warranty	7-year Parts & Labor; 7-year Compressor
Width (in)	72.38
Series	TSSU Series
Refrigerant	R290 (Hydrocarbon)
No. of Doors	3
Phase	1
Rating	Better
Product	Prep Tables
Product Type	Commercial Refrigeration
NEMA	5-15P
Max Pan Depth (in)	6
Weight	435.00
