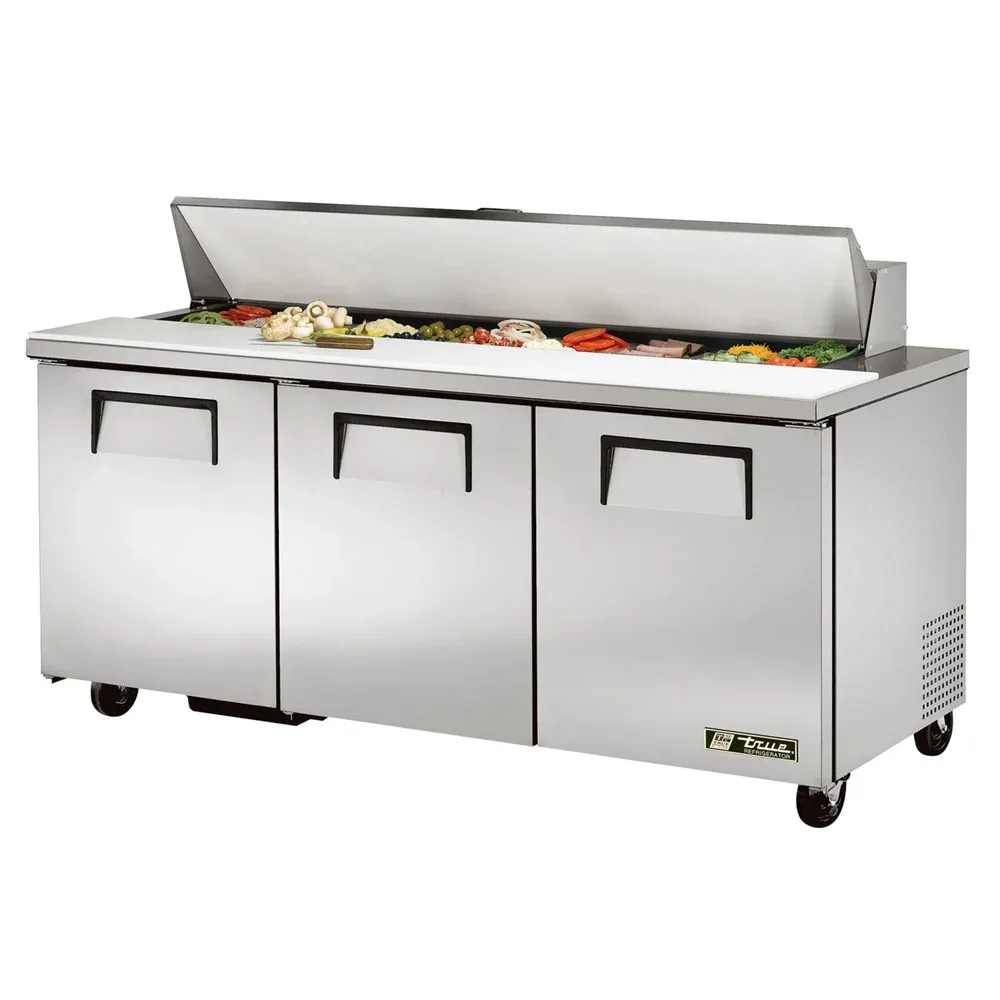

True   72″ TSSU Series Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

The factory-engineered refrigeration system in the True TSSU-72-18-HC food prep table has a self-contained capillary tube system that uses R290 hydrocarbon refrigerant—a more environmentally friendly option than traditional alternatives. This energy-efficient, balanced design supplies guided airflow that provides uniform temperatures in the food pan rail and the cabinet interior. Accessible from the back of the cabinet, the condensing unit has a convenient, slide-out feature. Products are held by a forced-air design at a set temperature between 33 and 41 degrees Fahrenheit, which operators can set and adjust to suit their application. When the compressor fan starts up, it’s motor automatically reverses for 20 seconds to blow debris off the condenser coil. This improve system efficiency, reduces energy consumption, and prolongs the unit’s lifespan. However, the self-cleaning doesn’t take the place of routine preventative maintenance.

In the pan rail, this True TSSU-72-18-HC prep table has 18 sixth-size, 4-inch-deep pans that can hold ingredients for salads and sandwiches, and users can prepare meals on the full-length cutting board. Additional products can be stored in the cabinet base on six adjustable, corrosion-resistant shelves. Through its three doors, operators can access the aluminum-lined interior, which has a stainless steel floor that is quick to wipe down. These doors stay open past 90 degrees to ensure loading and unloading product is convenient.

Product Details

• Stainless steel construction on front, top, and ends
• Steel back is coated with corrosion-resistant GalFan
• 5-in.-diameter stem castors with locks provided on front set
• 36-in. work surface height
• Entire cabinet structure and solid doors are foamed in place with high-density polyurethane insulation to keep cold air around product
• Positive-seal, self-closing doors stay open past 90 degrees for convenient loading
• Seamless, magnetic door gaskets are detachable without tools
• Removable, full-length cutting board is 11³⁄₄ in. deep by ¹⁄₂ in. thick
• Stainless steel exterior and clear aluminum liner match cabinet interior
• Each door has a 12-in.-long, recessed handle that is foamed in place with sheet metal interlock
• Interior has a clear-coated aluminum liner that resists corrosion
• Coved corners on stainless steel floor eliminate debris-trapping crevices
• Foam-insulated, removable lid and hood assemblies retain cold air to preserve product freshness
• Includes 18 sixth-size, 4-in.-deep pans
• Countertop pan opening accommodates varying size pan configurations with available pan divider bars (pans sold separately)
• 6 adjustable, heavy-duty wire shelves are PVC coated to resist corrosion
• Each shelf includes 4 chrome-plated clips

Factory-engineered Refrigeration System

• Uses R290 hydrocarbon refrigerant
• Condensing unit access in back of cabinet with slide-out feature
• Temperature holding range: 33-41 degrees F
• Forced-air design evenly cools the food pans and cabinet interior
• Low-velocity, high-volume airflow with sealed, self-lubricating evaporator fan motor and large fan blades
• Compressor operates in reverse mode for 20 seconds upon start up, blowing dust off condenser coils
• Epoxy-coated evaporator eliminates potential of corrosion

Dimensions & Utilities

• Pans: 6⁷⁄₈ in. L x 6¹⁄₄ in. W x 4 in. D
• 2 right and 2 left shelves: 21⁹⁄₁₆ in. W x 16 in. D
• 2 center shelves: 23¹⁄₂ in. W x 16 in. D
• Overall: 72⁵⁄₁₆ in. W x 31¹⁄₁₆ in. D x 43 in. H
• 7.2 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug



Manufacturer	True Refrigeration
Cutting Board Depth (in)	11.75
Depth (in)	31.13
Front Access	Door
Height (in)	43
Hertz	60
Type	Standard
Use	Sandwich/Salad
Voltage	115
Warranty	7-year Parts & Labor; 7-year Compressor
Width (in)	72.38
Series	TSSU Series
Refrigerant	R290 (Hydrocarbon)
No. of Doors	3
Phase	1
Rating	Better
Product	Prep Tables
Product Type	Commercial Refrigeration
NEMA	5-15P
Max Pan Depth (in)	6
Weight	445.00
