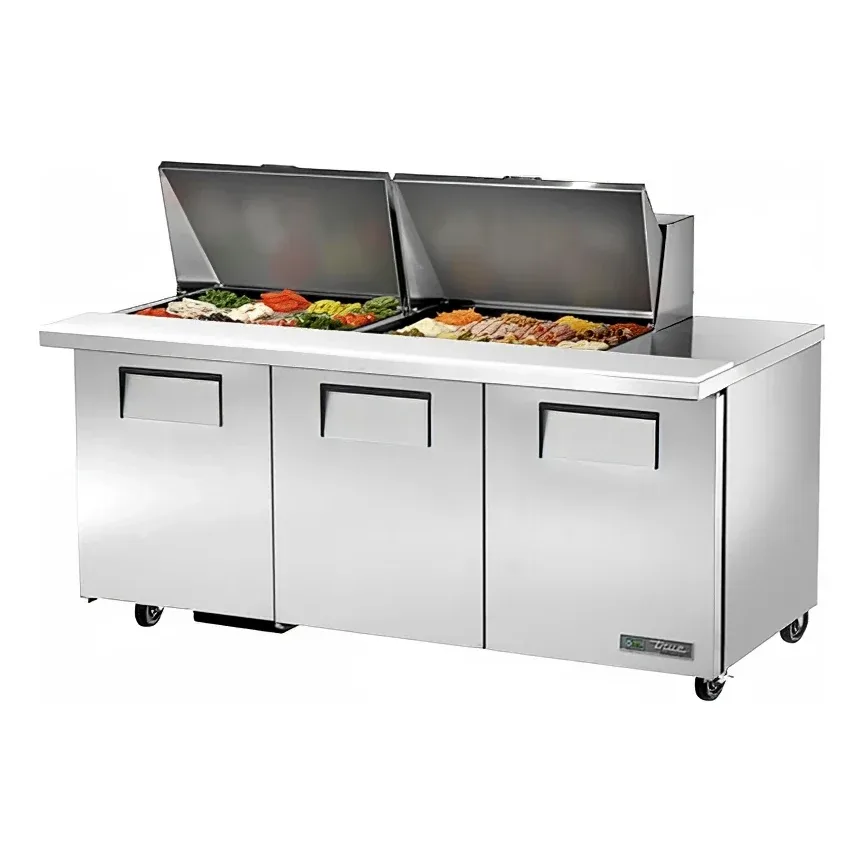

True    72″ TSSU Series Mega Top Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

Spanning the length of the unit, the True TSSU-72-24M-B-ST-HC food prep table’s cutting board measures 8⁷⁄₈-inch-deep by ¹⁄₂-inch-thick and is removable to facilitate cleaning. On the cutting board, operators can prep ingredients for the pans and use the ingredients to build sandwiches. Its pan rail comes with 24 sixth-size, 4-inch-deep pans, but it can hold varying size pan configurations with pan divider bars, which are sold separately. A foam-insulated hood and lid assembly over the pan area traps cold air around the product, preserving freshness and reducing condensation.

This True TSSU-72-24M-B-ST-HC mega-top prep table has a 36-inch-high work surface and is equipped with 5-inch-diameter stem castors with locks on the front set. To resist corrosion, its front, top, and ends are stainless steel, while its steel back is coated in GalFan. Its stainless steel floor has coved corners to prevent debris buildup, and because the interior is lined with clear-coated aluminum, it can be conveniently wiped down. For additional storage, six PVC-coated shelves are in the refrigerated base and can be adjusted to fit tall products.

When the compressor’s fan motor starts up, it reverses for 20 seconds to blow debris, dirt, and dust off the condenser coil. With the coil being cleaned automatically, the system runs more efficiently and reduces energy consumption compared to units running with a dirty condenser. Although this self-cleaning feature improves run times and prolongs the unit’s lifespan, it doesn’t replace routine preventative maintenance recommendations.

Product Details

• 36-in.-high work surface
• Removable, 8⁷⁄₈-in.-deep cutting board runs the length of the unit
• Comes with 24 sixth-size, 4-in.-deep clear polycarbonate food pans
• Countertop prep area accommodates 6-in.-deep food pans (sold separately)
• Pan opening is designed to hold available pan divider bars and varying size pan configurations (additional pans sold separately)
• Stainless steel lids and hoods are removable and insulated with foam to keep pan temperatures cold while locking in freshness and minimizing condensation
• 5-in.-diameter stem castors with locks on front set
• Stainless steel front, top, and ends are heavy duty
• Steel back is coated in GalFan to resist corrosion
• Clear-coated aluminum interior liner
• Stainless steel floor with coved corners minimize debris buildup
• 90-degree, stay-open feature on self-closing doors holds them open so users can stock the cabinet
• 12-in.-long, recessed handle is fitted on each door and foamed-in-place with sheet metal interlock to ensure permanence
• Shelf support pilasters and cabinet interior are made of the same material
• 6 adjustable wire shelves are coated in heavy-duty PVC
• 4 chrome-plated clips available per shelf
• Shelves are adjustable in ¹⁄₂-in. increments
• Single-piece, magnetic door gaskets are removable without tools

Efficient Refrigeration System

• Slide-out condenser is accessible from the back
• Guided airflow in energy-efficient, factory-balanced refrigeration system provides uniform temperatures in food pans and cabinet interior
• Uses eco-friendly R290 hydrocarbon refrigerant
• Temperature holding range: 33-41 degrees F
• Sealed, self-lubricating evaporator fan motor and large fan blades create low-velocity, high-volume airflow design
• Compressor fan motor’s reversing upon start up removes debris from condensing coil for 20 seconds
• Corrosion-resistant, epoxy-coated evaporator

Dimensions & Utilities

• Pans: 6⁷⁄₈ in. L x 6¹⁄₄ in. W x 4 in. D
• 2 right and 2 left shelves: 21⁹⁄₁₆ in. W x 16 in. D
• 2 center shelves: 23¹⁄₂ in. W x 16 in. D
• Overall: 72⁵⁄₁₆ in. W x 35¹⁄₁₆ in. D x 46¹⁵⁄₃₂ in. H
• 7.2 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug





Manufacturer	True Refrigeration
Cutting Board Depth (in)	8.88
Depth (in)	35.13
Front Access	Door
Height (in)	46.47
Hertz	60
Special Features	Extended Countertop
Type	Mega Top
Use	Sandwich/Salad
Voltage	115
Warranty	7-year Parts & Labor; 7-year Compressor
Width (in)	72.38
Series	TSSU Series
Refrigerant	R290 (Hydrocarbon)
No. of Doors	3
Phase	1
Rating	Better
Product	Prep Tables
Product Type	Commercial Refrigeration
NEMA	5-15P
Max Pan Depth (in)	6
Weight	455.00
