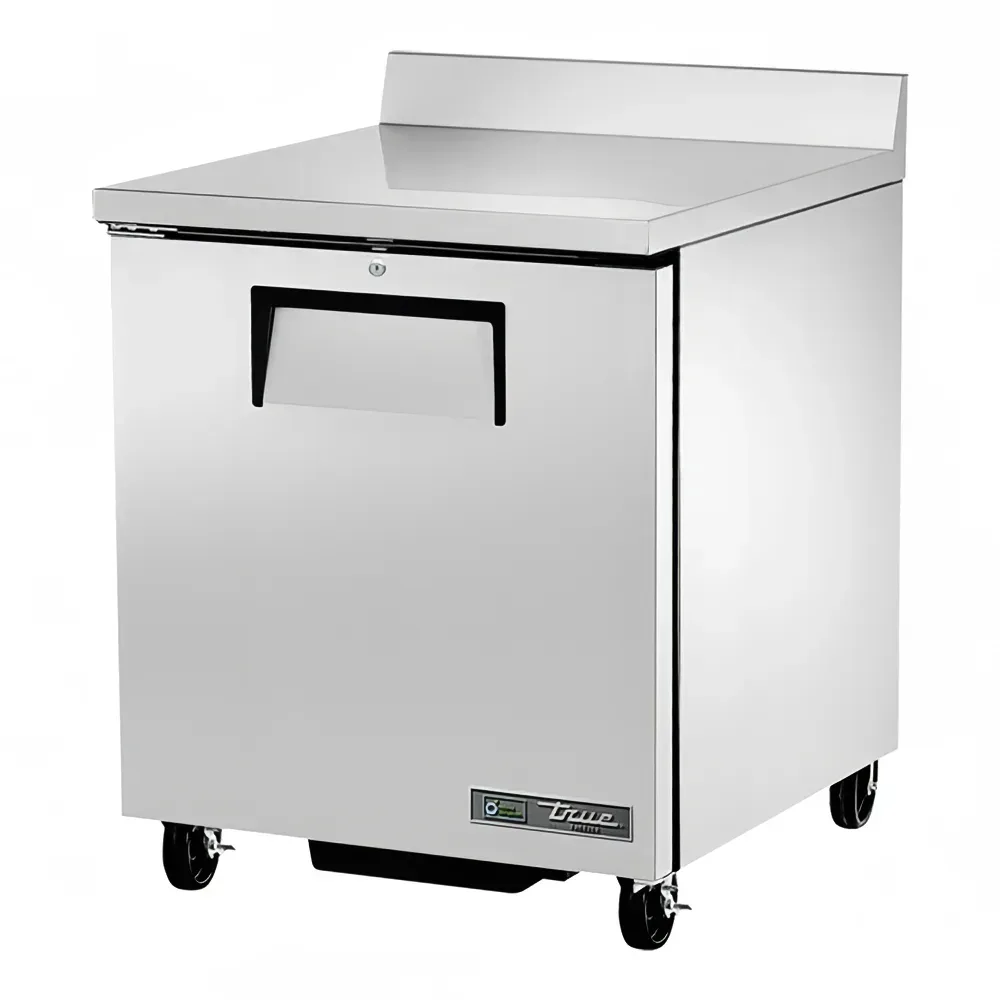

True  28″ W Worktop Freezer w/ (1) Section & (1) Left Hinge Door, 115v

With an extra-large evaporator coil, high horsepower, and a large condenser, the True TWT-27F-HC worktop freezer keeps temperatures at -10 degrees Fahrenheit. It operates with a cast iron, self-lubricating fan motor that is sealed and designed to produce an efficient, low-velocity, high-volume airflow with short run times and fast temperature recovery. The defrost system is automatic, time initiated, and time terminated, while the capillary tube system uses eco-friendly R290 hydrocarbon refrigerant.

When paired with regular preventive maintenance, the fan compressor’s self-cleaning function helps lower energy consumption and lengthen the unit’s lifespan. At the start of each cycle, the motor directs air in reverse for a 20-second period; this blows away any buildup that’s collected on the condensing coil since the last cycle.

Its stainless steel exterior has a GalFan-coated, steel back for corrosion resistance and the interior is lined with clear-coated aluminum. The backsplash and the top are formed from one piece to prevent crevices that trap food and foster bacterial growth. This unit features lockable, 5-inch-diameter stem castors, a work surface height of 36 inches, and polyurethane insulation.

The True TWT-27F-HC worktop freezer has two PVC-coated, wire shelves that each include four chrome-plated clips. The shelves are adjustable in ¹⁄₂-inch increments and the support pilasters are made of the same material as the cabinet interior for a cohesive look. The positive-seal, self-closing door swings within the cabinet dimensions with a 90-degree, stay-open feature and is fitted with a 12-inch-long, recessed handle with a sheet metal interlock. Magnetic door gaskets have a one-piece construction that can be removed without tools, expediting cleaning. This freezer is pre-wired at the factory for final connection to the included cord and plug set.

Product Details

• Operating temperature: -10 degrees F
• Capillary tube system uses R290 refrigerant with zero ozone depletion potential
• Extra-large evaporator coil, high-horsepower compressor, and a large condenser perfect for frozen foods
• Self-lubricating, sealed fan motor has large blades and a low-velocity, high-volume design
• Features fast temperature recovery and short run times
• Reversal of the fan motor for 20 seconds knocks dirt, debris, and dust from condensing coil
• Located in the back of the unit, the condenser is swiftly cleaned and reached
• Evaporator is epoxy-coated for corrosion-resistance
• Automatic defrost system is time initiated and time terminated
• Stainless steel exterior has a GalFan-coated, steel back
• Top and backsplash are formed from one piece to prevent product from spilling underneath
• Interior has a clear-coated aluminum liner and a stainless steel floor with coved corners
• Insulated with high-density polyurethane
• Work surface is 36 in. high
• With a lockable front set, stem castors have 5-in. diameters
• Positive-seal, self-closing door is fitted with a 12-in.-long, recessed handle that is foamed in place with sheet metal
• Door has a 90-degree, stay-open capability and swings within the cabinet dimensions
• Includes 2 shelves adjustable in ¹⁄₂-in. increments
• Shelves are made of PVC-coated wire and each includes 4 chrome-plated clips

Dimensions & Utilities

• Shelves: 23¹⁄₄ in. W x 16 in. D
• Overall: 27⁵⁄₈ in. W x 3 in. D x 39⁵⁄₈ in. H
• 2.3 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug



Manufacturer	True Refrigeration
Access	Door
Base	Casters
Compressor Location	Rear
Cubic Feet	7.6
Depth (in)	31.13
Height (in)	39.63
Hertz	60
Sections	1
Voltage	115
Warranty	7-year Parts & Labor; 7-year Compressor
Width (in)	27.63
Series	TWT Series
Refrigerant	R290 (Hydrocarbon)
Phase	1
Rating	Better
Product	Worktop Freezers
Product Type	Commercial Refrigeration
NEMA	5-15P
Hinge Configuration	Left
Weight	210.00
