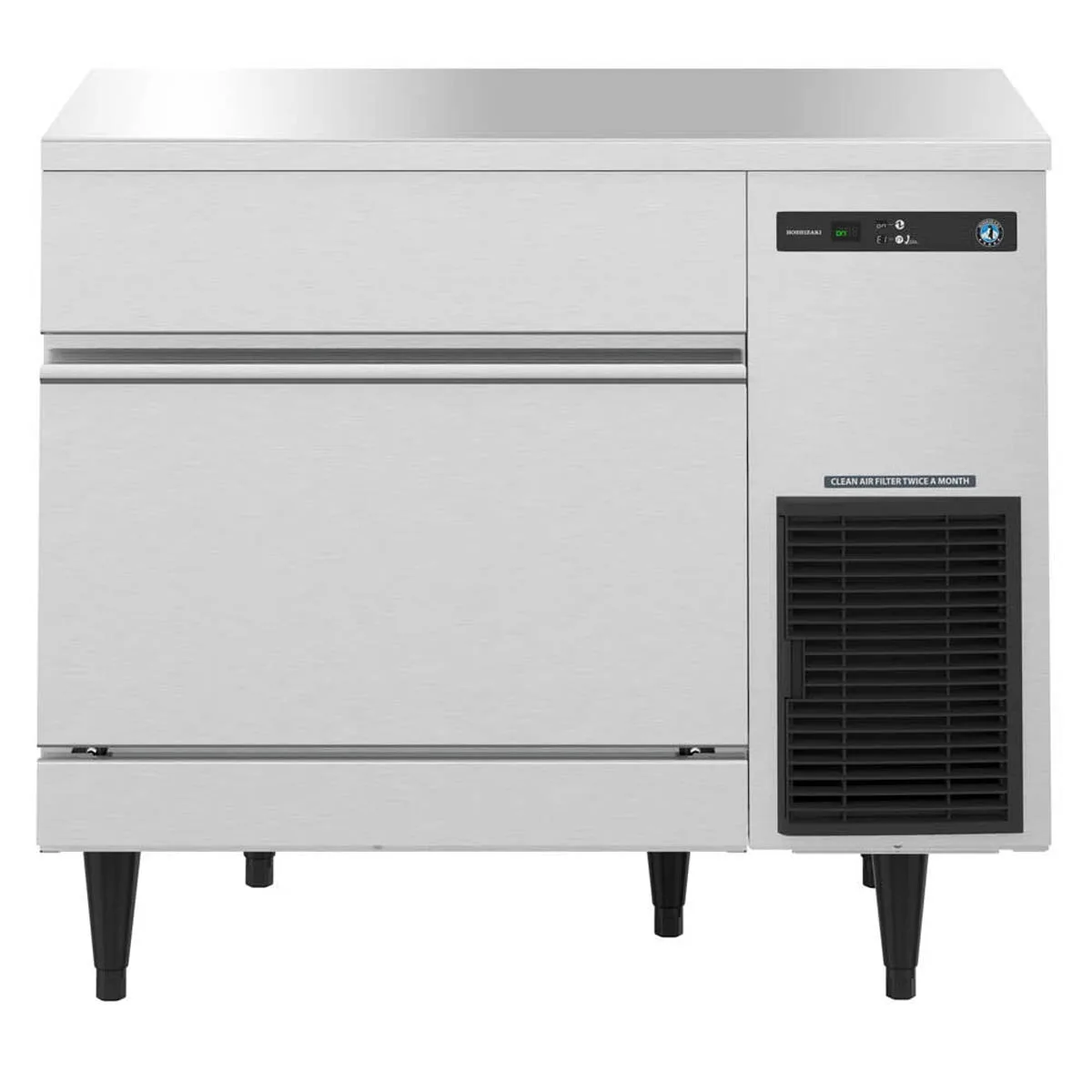

Hoshizaki IM-200BAC 39 1/2″ Full Cube Undercounter Ice Machine – 188 lbs/day, Air Cooled

Hoshizaki IM-200BAC Features

• The Hoshizaki IM-200BAC undercounter ice maker creates large, individual cubes of ice that are ideal for sodas or cocktails. It makes a maximum of 188 pounds of ice per day when operated in ideal conditions and can hold 75 pounds of ice in its built-in storage compartment.

  The Hoshizaki IM-200BAC undercounter ice maker has a self-contained condenser that uses R404A refrigerant. It’s cooled by air, so it can be installed in most applications. The unit’s control system uses EverCheck™ alerts that tell nearby users when it requires maintenance.

  Product Details

  • Makes individual cube-style ice

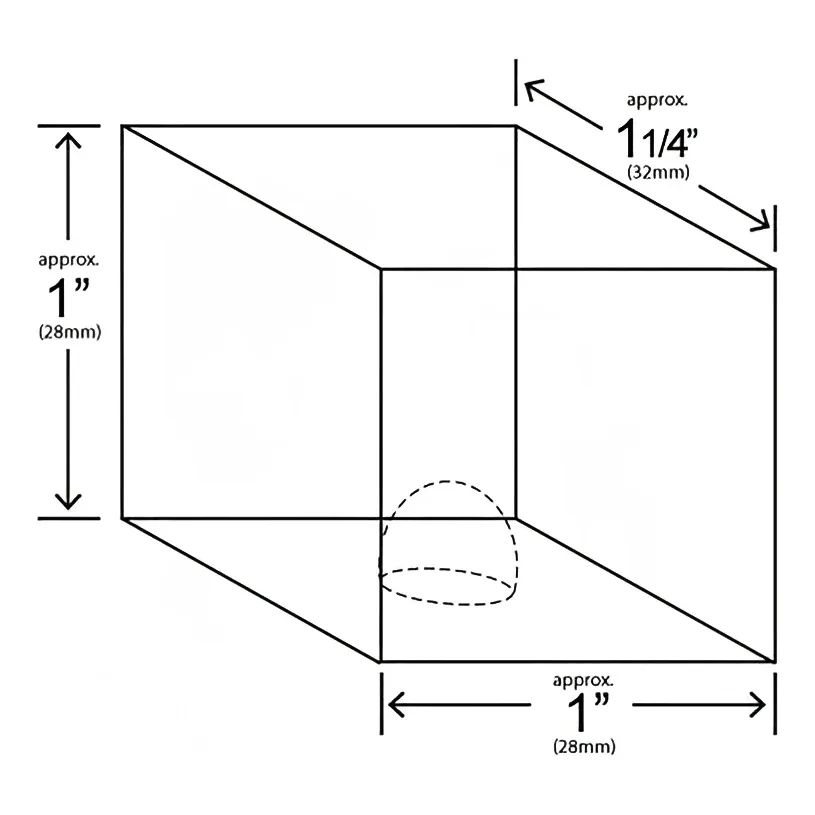

  • Ice dimensions: 1 in. x 1¹⁄₄ in. x 1 in.
  • Condenser is self-contained and air cooled
  • Uses R404A refrigerant
  • Maximum production capacity: 188 lbs./24 hrs. at 70 degrees F
  • AHRI certified production capacity: 150 lbs./24 hrs. at 90 degrees F
  • 75-lb. built-in storage capacity
  • Stainless steel finish
  • EverCheck digital control system shows system functions on LED display
  • Alert system lets users know of issues
  • Removable filter
  • Mounted on 6-in. legs
  • 3,420-BTU/hr. heat transfer capacity

  Operating Limits

  • Ambient temperature: 45-100 degrees F
  • Water temperature: 45-90 degrees F
  • Water pressure: 10-113 PSIG
  • Requires 6-in. clearance on right side, 2-in. clearance on rear

  Dimensions & Utilities

  • 39¹⁄₂ in. W x 23⁵⁄₈ in. D x 33¹⁄₂ in. H
  • 7.5 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug



Manufacturer	Hoshizaki
24 Hr. Production (lb)	188
Bin Capacity (lb)	75
Compressor Type	Air Cooled
Depth (in)	23.63
Design	Standard Height
Drain Type	Gravity
Height (in)	33.5
Hertz	60
Ice Type	Full Cube
Special Features	Removable Air Filter
Special Features	Alert System
Special Features	Digital Controls
Suggested Use	Commercial
Voltage	115
Warranty	3-year Parts & Labor; 5-year Compressor & Condenser Parts
Width (in)	39.5
Series	IM Series
Phase	1
Rating	Best
Product	Undercounter Ice Machines
Product Type	Ice Makers & Bins
NEMA	5-15P
Front Style	Stainless Door
Weight	212.00
