Hoshizaki IM-50BAA-Q 24 3/4″W Undercounter Ice Sphere Machine – 50 lbs/day, Air Cooled
Free ShippingQuick ShippingSpecial Deals

The image above may not exactly represent the product

SKU HSZ-IM-50BAA-Q

Hoshizaki IM-50BAA-Q 24 3/4″W Undercounter Ice Sphere Machine – 50 lbs/day, Air Cooled

(1)● In stock
$6,420.00
1

Questions about this item? Call (833) 345-2433 or — real specialists, Mon–Fri 8am–4pm CT.

In stock — ships in 2–4 business days

Ships direct from the manufacturer’s warehouse · free parcel shipping

1-year parts & labor warranty

Backed by the manufacturer. Our specialists handle claims for you.

30-day returns · no restocking fee on our error

Freight damage? We file the claim. Read our promise →

Authorized Hoshizaki Dealer

1-year parts & labor warranty · Shop all Hoshizaki

Categories: Ice Machines, Undercounter Ice Machines

Hoshizaki IM-50BAA-Q 24 3/4″W Undercounter Ice Sphere Machine – 50 lbs/day, Air Cooled

Constructed to make as much as 50 pounds of ice in 24 hours, the Hoshizaki IM-50BAA-Q undercounter ice maker produces sphere cubes that melt slowly to chill beverages with minimal dilution. This unit’s storage bin has the capacity for 36 pounds of ice. The ice maker uses environmentally friendly R-134a refrigerant and needs at least 6 inches of clearance from the top and rear and 6 inches of side clearance on only one side for maximum performance. Overall, this unit measures 2434 inches in width by 2034 inches in depth by 3912 inches in height.

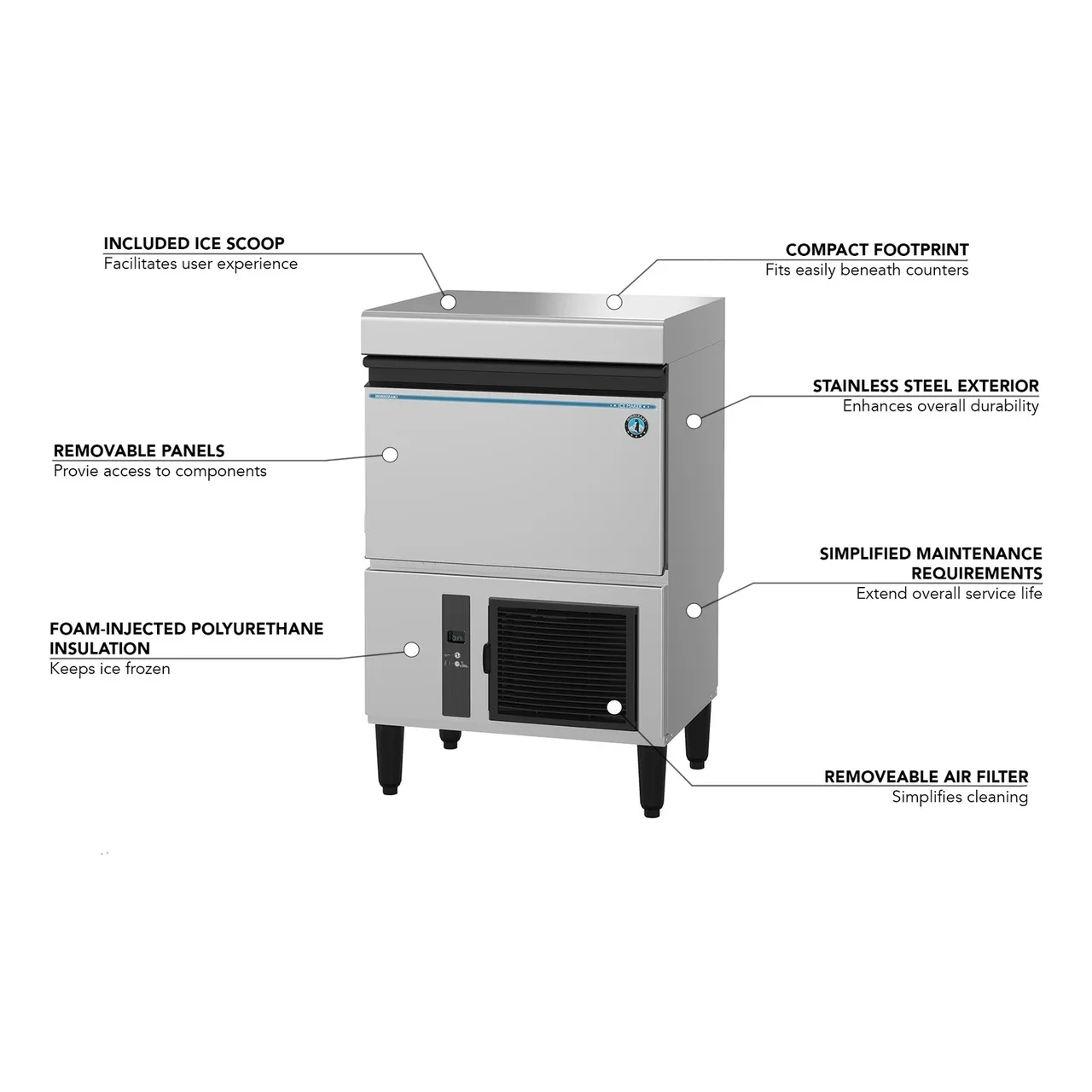

Standing up to dents and scratches and easing cleaning, the Hoshizaki IM-50BAA-Q commercial ice maker’s exterior is constructed of durable stainless steel. Operators can easily clean this unit’s air filter, and it’s insulated with foam-injected polyurethane to ensure ice remains frozen. For user convenience, an ice scoop is included. Ice is formed in the ice maker when its nozzle injects water in the evaporator’s sphere ice-forming chamber to simultaneously make 15 spheres. This unit requires an ambient air temperature range of 45 to 100 degrees Fahrenheit and an ambient water temperature range of 45 to 90 degrees Fahrenheit.

Product Details

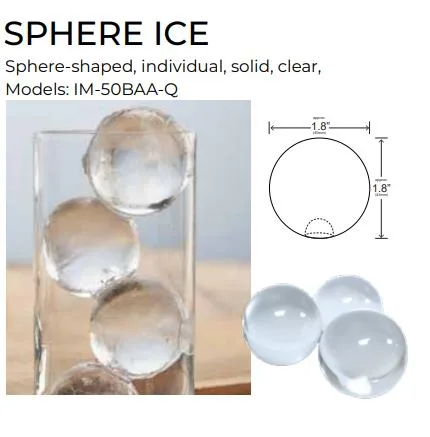

  • Produces 1.8-in.-diameter ice spheres
  • 50-lb. maximum daily ice production
  • 45-lb. AHRI certified daily ice production
  • 36-lb. maximum ice storage capacity
  • Durable stainless steel construction
  • Simple-to-clean air filter
  • Insulated with foam-injected polyurethane
  • Closed water circuit protects against contamination
  • Ice scoop included
  • Potable water usage: 69 gal. per 24 hours
  • 1,500-BTU heat transfer capacity
  • R134a refrigerant
  • Ideal incoming air temperature: 45-100 degrees F
  • Ideal incoming water temperature: 45-90 degrees F
  • Ideal incoming water pressure: 7-113 PSIG
  • All components accessible for service

Dimensions & Utilities

  • Overall: 2434 in. W x 2034 in. D x 3912 in. H
  • 15.7 kW, 5 A
  • 115 V/60 Hz/1 ph, 6.5-ft. cord with NEMA 5-15P plug
