Hoshizaki KM-1601SRJZ 48″ Crescent Cube Ice Machine Head – 1640 lb/24 hr, Remote Cooled, 208-230v

With a durable, rust- and corrosion-resistant stainless steel construction, the Hoshizaki KM1601SRJZ ice machine head can withstand frequent use in a fast-paced environment. This unit can produce up to 1,640 pounds of ice over 24 hours if the ambient temperature is 70 degrees Fahrenheit and the incoming water temperature is 50 degrees Fahrenheit. It produces crescent cube style ice that can be used for serving drinks or to keep food cold.

The Hoshizaki KM1601SRJZ ice maker head has a H-GUARD Plus antimicrobial agent to reduce the growth of mold and bacteria in its internal components. This unit relies on R404A refrigerant to maintain operating temperatures. This item requires a remote condenser and an ice bin for proper operation. Note that both the condenser and ice bin must be purchased separately.

Product Details

• KM Series
• Remote, air-cooled system
• 1,640-lb. production per 24-hrs. at 70 degrees F ambient and 50 degrees F incoming water
• 1,600-lb. production per 24-hrs. at 90 degrees F ambient and 70 degrees F incoming water

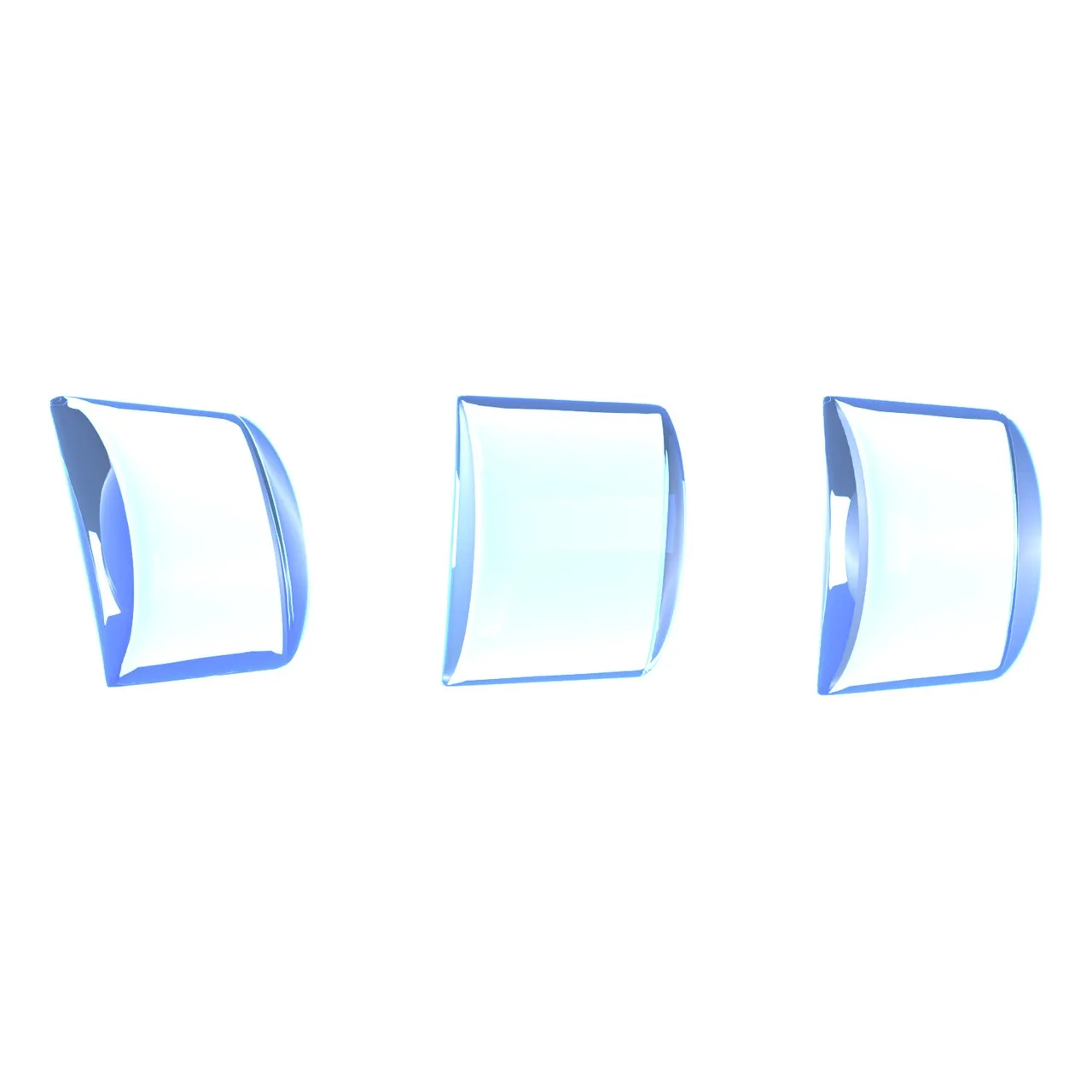

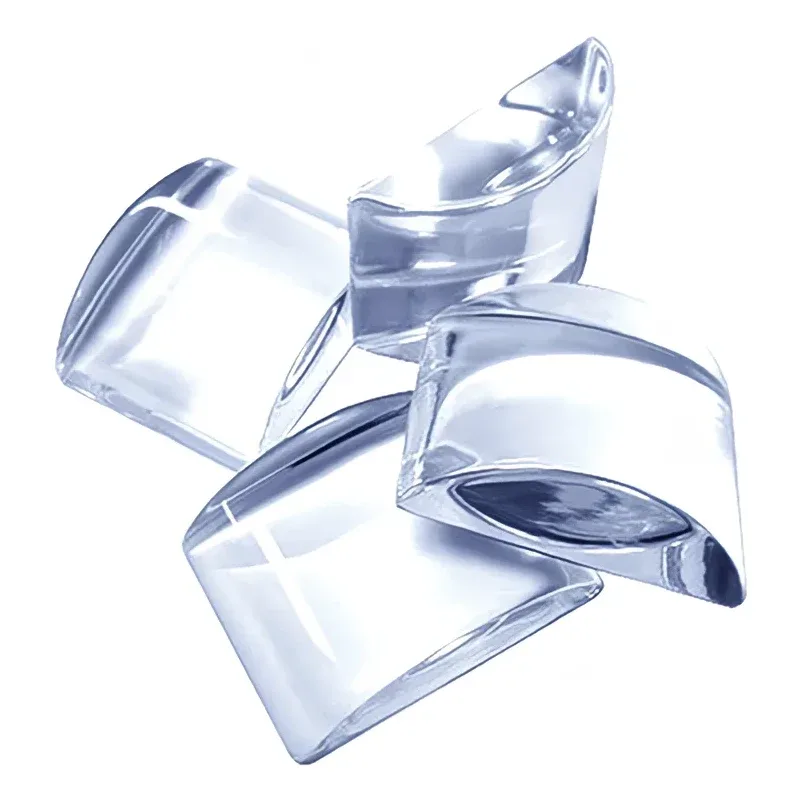

• Individual crescent cube ice shape

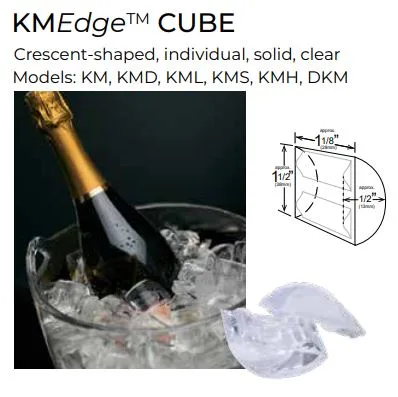

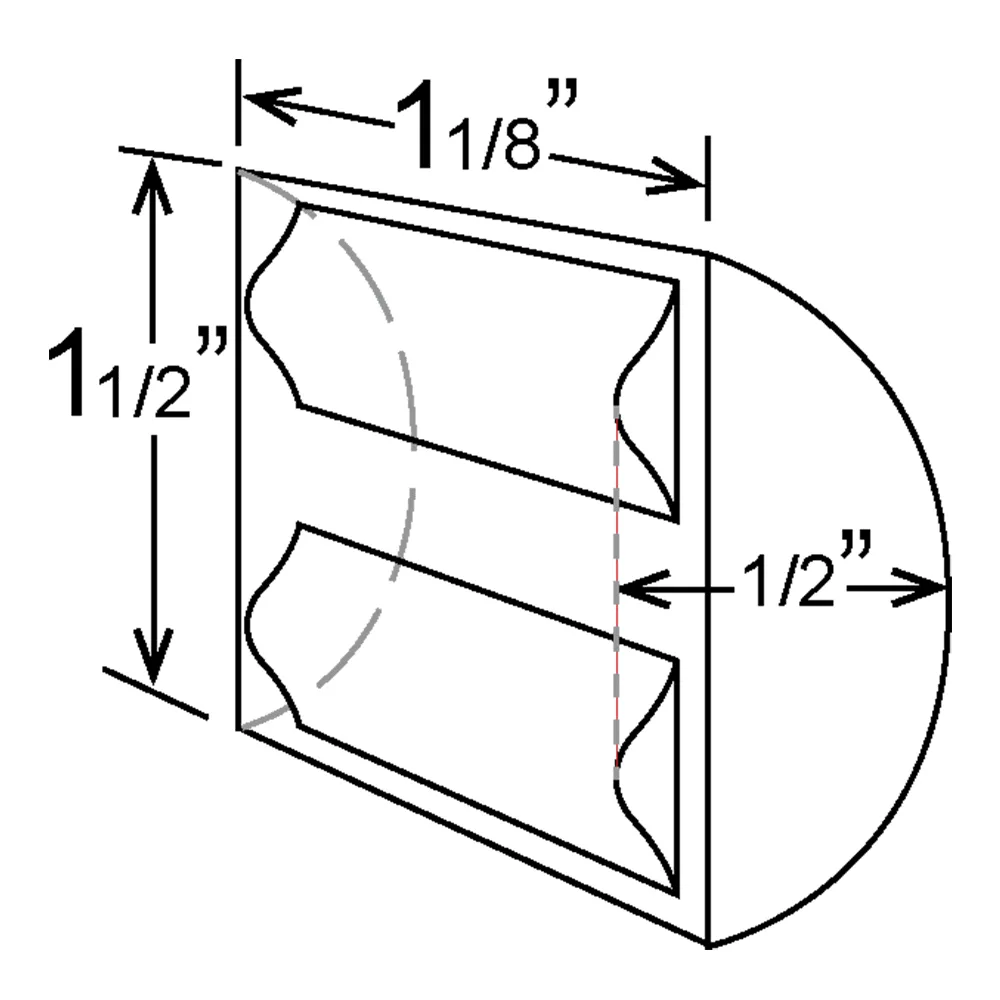

• Crescent-cube ice size: 1¹/₈ in. W x ¹/₂ in. D x 1¹/₂ in. H
• Durable, stainless steel exterior
• H-GUARD Plus antimicrobial agent
• EverCheck™ alert system
• CycleSaver™ design
• R404A refrigerant
• Requires remote condenser (sold separately)
• Ice bin not included
• 21,200 BTU
• “Z” model ice machine must be paired with “Z” model remote condenser

Optimal Operating Conditions

• Ambient temperature holding range: 45-100 degrees F
• Water temperature holding range: 45-90 degrees F
• Water pressure: 10-113 PSIG
• Clearances: 9-in. on both sides, 9-in. in rear, and 9-in. above
• Water supply requires copper water tubing with a minimum ³/₈-in. inner diameter
• Drain needs hard pipe with a minimum ³/₄-in. inner diameter

Dimensions & Utilities

• 48 in. W x 27³/₈ in. D x 27³/₈ in. H
• 15.9 A, 3.96 kW
• 208-230 V/60 Hz/1 ph



Manufacturer	Hoshizaki
24 Hr. Production (lb)	1640
Amps	15.9
Compressor Type	Remote Cooled
Depth (in)	27.38
Height (in)	27.38
Hertz	60
Ice Type	Crescent Cube
Special Features	Removable Air Filter
Special Features	CycleSaver™
Voltage	208/230
Warranty	3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts
Width (in)	48
Series	KM Series
Phase	1
Rating	Best
Product	Ice Machine Heads
Product Type	Ice Makers & Bins
Weight	335.00
