Ice-O-Matic ICEU226HA 24 1/2″W Half Cube Undercounter Ice Machine – 241 lbs/day, Air Cooled

Measuring 24²⁷/₅₀ inches in width by 26²⁷/₁₀₀ inches in depth by 39 inches in height, the Ice-O-Matic ICEU226HA half-cube ice maker is optimal for placement beneath countertops. This compact unit produces as much as 241 pounds of ice in 24 hours under ambient conditions and holds 70 pounds of ice at a time. To reduce energy consumption and enhance storage capacity, the ice maker is equipped with Harvest Assist, which consistently produces ice for the life of the unit. Enhancing sanitation between cleanings, uilt-in antimicrobial defense prevents bacterial growth on ice maker surfaces. The entire unit is made of durable stainless steel.

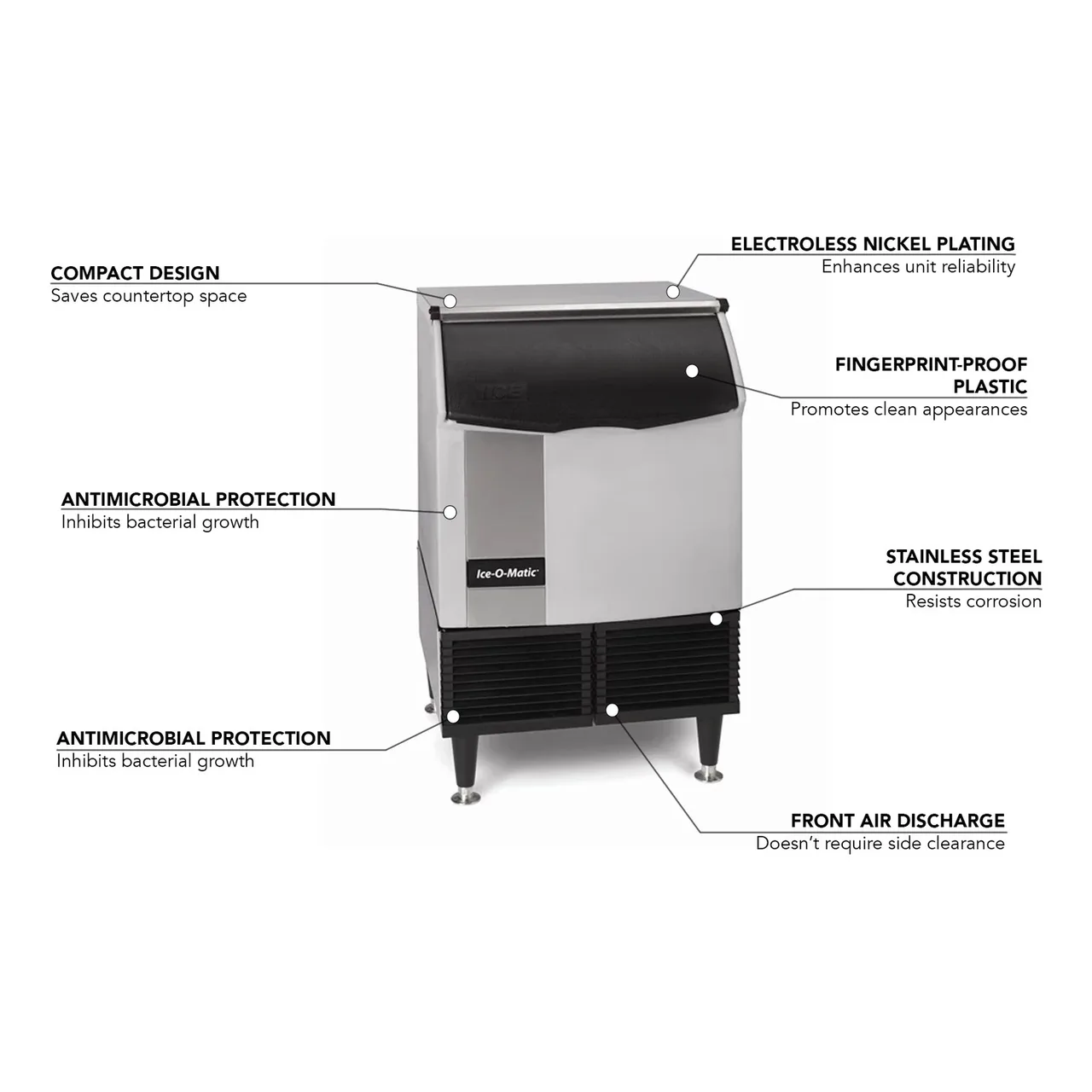

Promoting a clean appearance, the plastic components of the Ice-O-Matic ICEU226HA undercounter half-cube ice machine are resistant to fingerprints. This unit’s door slides up to facilitate ice access, and because its air filter is located on the front, side clearance isn’t necessary. Optimizing reliability, each evaporator plate in the ice machine is equipped with heavy-duty electroless nickel plating. This unit produces ice measuring ³⁄₈ inch in width by ⁷⁄₈ inch in depth by ⁷⁄₈ inch in height.

Product Details

• Produces half-cube ice
• For undercounter placement
• 241-lb. maximum daily ice production
• 168-lb. AHRI-certified daily ice production
• 70-lb. maximum ice storage capacity
• Air-cooled unit
• Corrosion-resistant stainless steel
• Fingerprint-resistant plastic
• Slide-back door facilitates access to ice
• Front-breathing system doesn’t require side clearance
• Harvest Assist streamlines production
• Gravity drain type
• Pure Ice® protects internal surfaces from bacterial growth
• Electroless nickel plating on evaporator plate extends service life
• Eco-friendly R-404A refrigerant
• Low profile saves counter space
• Ice dimensions: ³⁄₈ in. W x ⁷⁄₈ in. D x ⁷⁄₈ in. H
• Ideal incoming air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-60 PSIG
• Uses 25 gal. of water per 100 lbs. of ice
• 4321-BTU heat transfer capacity

Dimensions & Utilities

• 24²⁷/₅₀ in. W x 26²⁷/₁₀₀ in. D x 39 in. H
• ³⁄₈-in. FPT ice maker water in
• ³⁄₄-in. FPT bin and ice maker drain
• ⁷⁄₈-in. hole for electrical connections
• ³⁄₈-in. FPT condenser water in
• ¹⁄₂-in. FPT condenser water out
• 6 A, 9.2 kW
• 208-230 V/60 Hz/1 ph

Ice-O-Matic ICEU226HA Specifications
