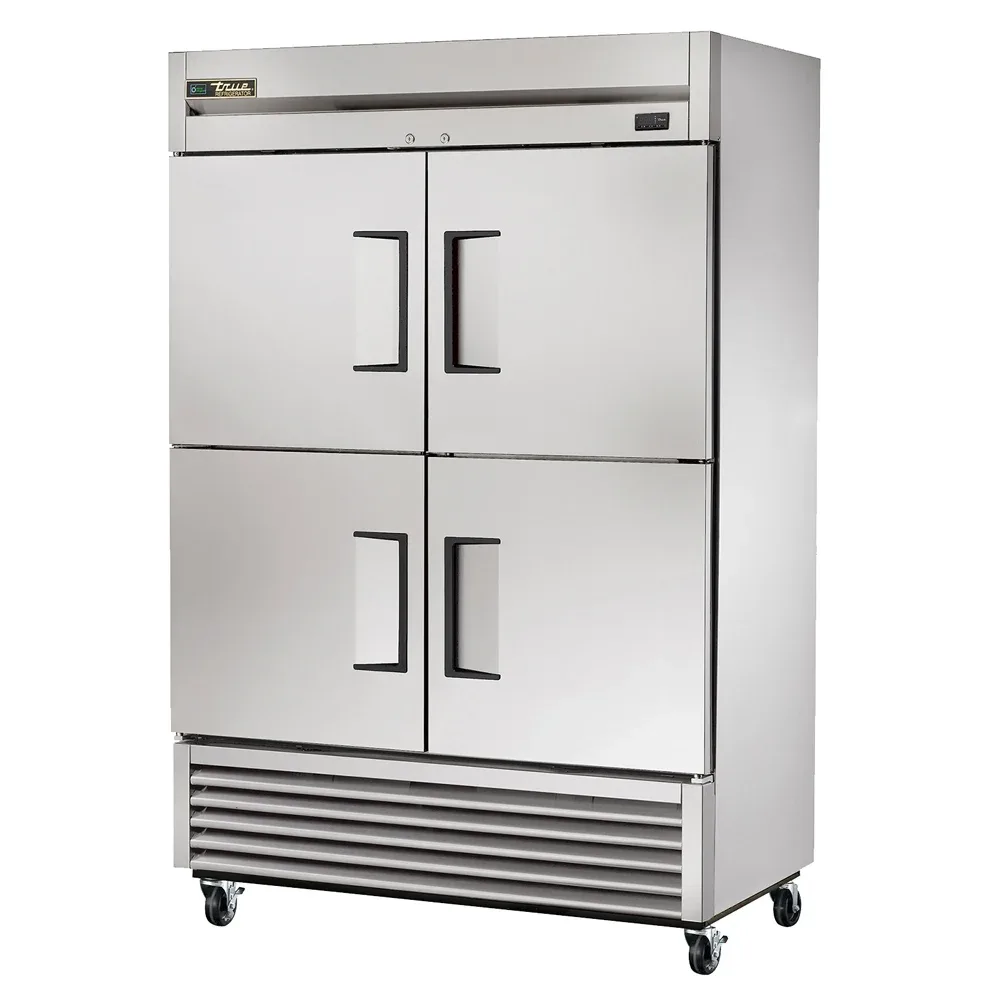

True   54 1/10″ Two Section Reach In Refrigerator, (4) Left/Right Hinge Solid Doors, 115v

To withstand heavy use, the True TS-49-4-HC reach-in refrigerator has a stainless steel and GalFan-coated steel exterior while four solid, half doors have firmly attached handles and standard locks. Each door closes by itself, limiting how much cold air escapes, and they stay open past 90 degrees for unhindered access. Stainless steel makes up the interior of the cabinet and provides a rust-resistant area to store items. Its floor is raised, helping users reach products on the bottom, and tall products can fit inside by adjusting or removing the PVC-coated shelves.

Temperatures in the True TS-49-4-HC two-section refrigerator range from 33 to 38 degrees Fahrenheit and are maintained by capillary tubes, which control the flow of R290 refrigerant. After cold air is created, fans circulate air through the cabinet and around stored products. A self-contained, bottom-mounted condenser keeps the internal components accessible for repair and enables storage on top of the refrigerator.

This unit’s condensing fan motor automatically cleans off built-up debris from the condensing coil when the compressor is turned on, blowing in an opposite direction for 20 seconds. This mechanism works in tandem with general maintenance practices to ensure the coil is working properly over time.

Product Details

• Stainless steel front, sides, and doors resist corroding and scratching
• Steel back is GalFan coated to resist corrosion
• Welded steel frame rail provides strength
• Polyurethane insulation is foamed in cabinet walls and reinforces the structure
• Sheet metal interlock permanently attaches door handles
• Door locks provide security
• Self-closing doors can stay open at 90 degrees for loading product
• Gaskets create an airtight seal around the doors
• 6 heavy-duty shelves, coated with PVC
• Shelves are adjustable in ¹⁄₂-in. increments
• LED lights brighten the interior
• Cabinet is lined with stainless steel
• Mounted on 4-in. castors
• Part of the TS series

Self-contained Refrigeration System

• Temperature holding range: 33-38 degrees F
• Exterior digital temperature display
• Capillary tubes regulate R290 refrigerant flow
• Electronically commutated fan motors are more energy efficient than traditional motors
• Compressor start up causes reverse condensing fan motor to blow in a reverse direction for 20 seconds
• Corrosion-resistant, epoxy-coated evaporator
• Bottom-mounted, self-contained design simplifies maintenance



Manufacturer	True Refrigeration
Compressor Location	Bottom
Cubic Feet	44.3
Depth (in)	29.5
Door Type	Solid
Doors	Half
Height (in)	78.38
Hertz	60
Interior Material	Stainless Steel
Sections	2
Type	Reach In
Warranty	7-year Parts & Labor; 7-year Compressor
Width (in)	54.13
Refrigerant	R290 (Hydrocarbon)
No. of Doors	4
Phase	1
Rating	Best
Product	Reach-In Refrigerators
Product Type	Commercial Refrigeration
NEMA	5-15P
Hinge Configuration	Left/Right
Weight	455.00
