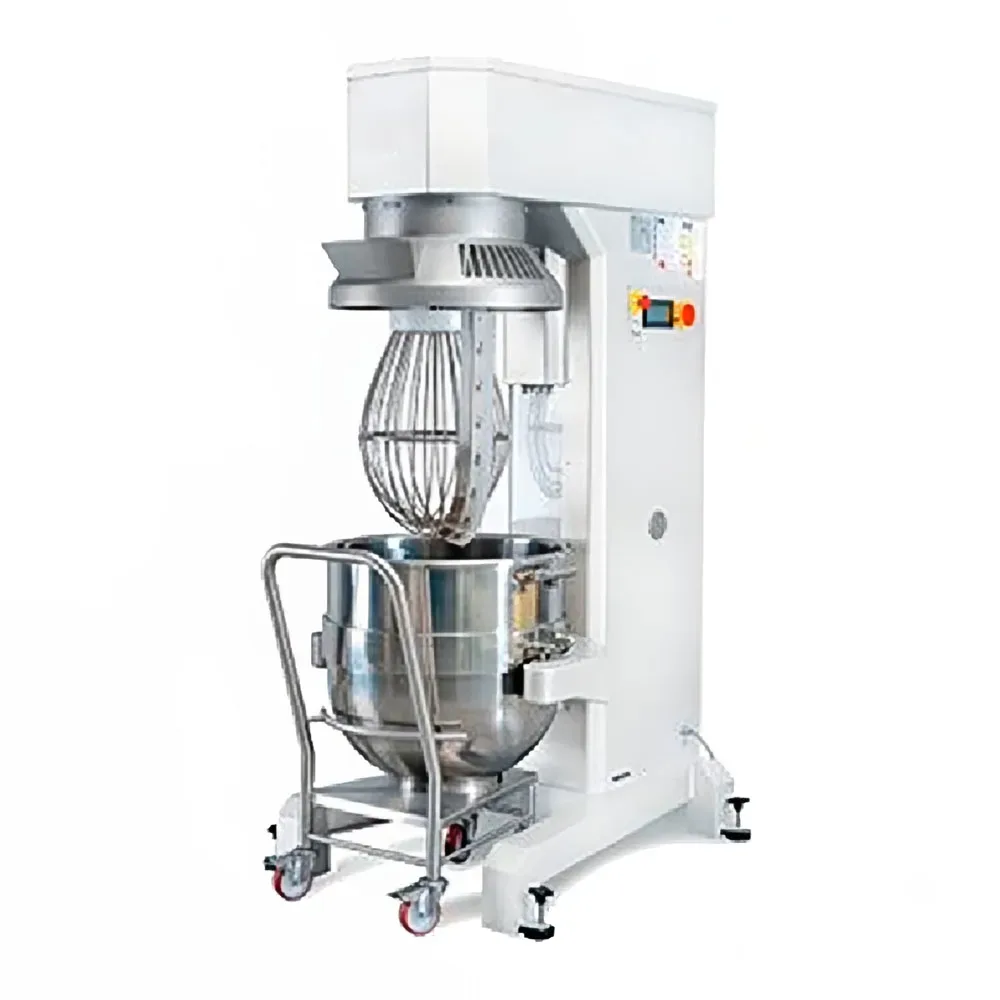

Doyon BTL100H 100 qt Planetary Mixer – Floor Model, 4 hp, 208-240v/3ph

The Doyon BTL100H planetary mixer can accommodate 100 quarts in the bowl. The bowl, dough hook, whip, and flat beater are made of durable stainless steel that facilitates cleaning, while its steel frame has an enamel finish for a professional look. It has a heavy-duty motor with overload protection and a belt that resists slipping to enable mixing thick products.

The mixer has 20 speeds that can be changed during operation. Seven speed and time settings are programmable to quickly mix popular recipes. Its touch screen controls are simple to use, and employees can easily keep track of mixing time with the 99-minute timer. The Doyon BTL100H planetary mixer is steadied by the locking anti-vibration device, with four casters for transportation.

Product Details

• Stainless steel dough hook, whip, flat beater, and bowl are included
• Durable steel frame with an enamel finish for prompt cleaning
• Stainless steel bowl guard creates visibility with its wire design
• 100-qt. bowl capacity
• Adjusts between 20 speeds
• 7 programmable time and speed settings
• Touch screen controls
• 99-min. timer enables users to monitor mixing time
• Emergency stop feature prevents accidents and malfunction
• High-powered motor with overload protection
• Belt resists slipping
• Anti-vibration device keeps the mixer stable during operation
• Automatic locks hold the bowl steady while mixing
• Electric system lifts the bowl
• 4 stationary casters
• 4 HP hook, ³⁄₄ HP lifter, ³⁄₄ HP hub, 17 A
• 208-240 V/60 Hz/3 ph, NEMA L15-30P plug
• Overall dimensions: 36¹⁄₄ in. W x 49³⁄₁₆ in. D x 82¹⁄₁₆ in. H



Doyon BTL100H Specifications

Spec Attribute	Spec Value
Manufacturer	Doyon
Color	White
Controls	Digital
Design	Floor Model
Dough Capacity (lb)	140
Flour Capacity (lb)	88
Hertz	60
HP	4
Special Features	Safety Guard
Type	Planetary Mixer (All Purpose)
Voltage	208/240
Warranty	Limited 2-year Parts; 1-year Labor
No. of Speeds	20
Transmission	Belt Driven
Phase	3
Rating	Best
Product	Mixers
Product Type	Food Prep Equipment
Bowl Capacity (qts)	100
Hub Size	#12 hub
NEMA	L15-30P
Includes	Accessories
Capacity Rating	Low Volume (0-100 quarts)
Weight	1200.00
