Self-Cleaning Condenser Device

The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products inside. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.

Digital Temperature Control & Monitor System

• Keep food products safe by maintaining constant temperatures.
• Alarms that sound when doors are not sealed shut; protect against food spoilage that originates from cold air leaks.
• Early warning alarm program detects issues before malfunction occurs.
• Digital display allows for easy monitoring.
• Programs interpret the condition of refrigeration systems by self-diagnosis.
• Rapid cool-down function (Turbo cooling).
• Automatic evaporator fan motor delays.

Hydrocarbon Refrigerants (R-290)

With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).

Energy Conserving Fan Control

Utilizing algorithmic air circulation for optimal temperature levels, our innovative fan control system conserves energy by at least 15% and increases compressor life by up to 30%.

Hot Gas Condensate System

Through Turbo Air’s creative innovation, the condensate system surfaces have been specially treated to resist corrosion. This not only increases efficiency without the risk of refrigerant leaking from corrosion, but also prevents the overflow of condensate water.

Double Pane Glass Doors with Low-E Glass

Energy saving double pane glass doors are equipped with Low-emissivity glass, which reduces outer heat gain and decreases energy consumption. It enhances energy efficiency and minimizes condensation. Lightweight door construction also reduces door maintenance and bushing wear, which in turn facilitates smoother door opening.

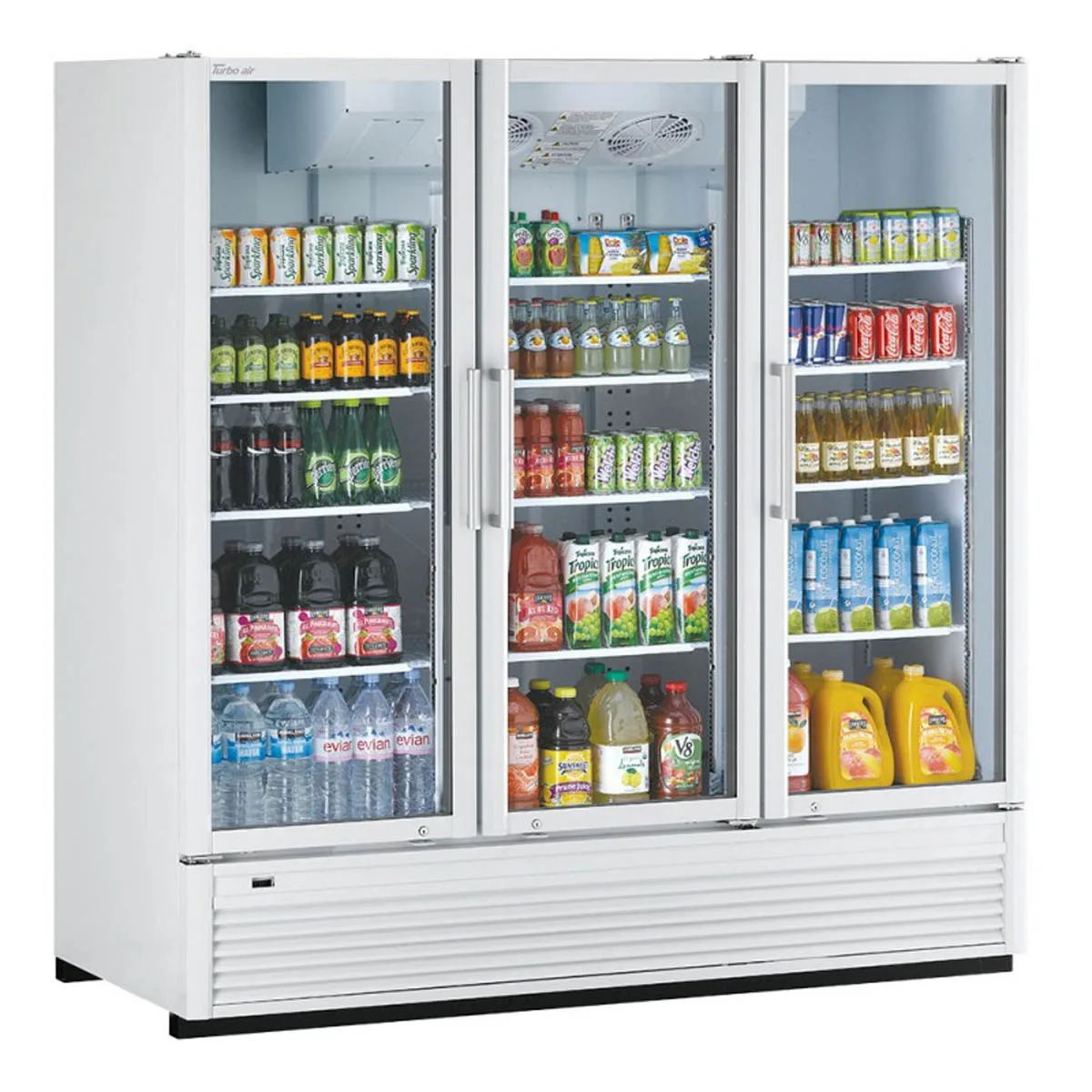

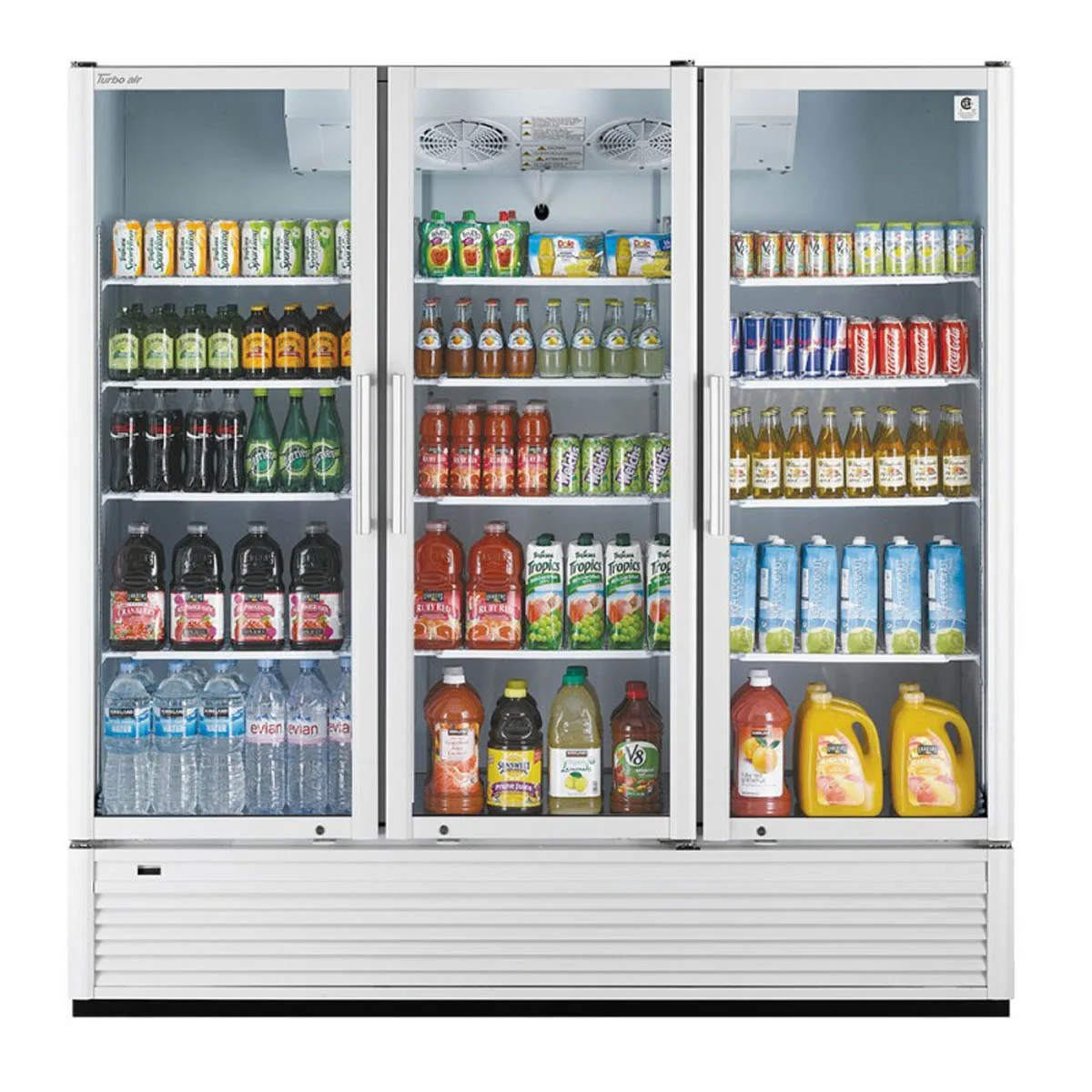

Turbo Air TGM-72SDH-N Features

• High-density polyurethane insulation: The entire cabinet structure and solid doors are foamed-in-place using high density, CFC free polyurethane insulation.
• LED interior lighting
• Refrigerator holds 33°F ~ 38°F for the best in food preservation
• Anti-corrosion coated evaporator
• Door locks standard

Turbo Air TGM-72SDH-N Specification

Super Deluxe Refrigerated Merchandiser, three-section, 70.5 cu. ft., (1475) 12 oz bottle capacity (1770 with additional shelf), 78″W x 31-1/2″D x 77″H, self-contained bottom mounted refrigeration, 33° to 38°F temperature range, self-cleaning condenser device equipped, (3) double pane Low-E glass doors with lock (hinged), door activated alarm system, exterior digital thermometer & controller, self-diagnostic monitoring system, LED interior lighting, (12) adjustable PE coated wire shelves, automatic fan motor delays, white interior, specify exterior color, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 7.8 amps, NEMA 5-15P, cETLus, ETL-Sanitation, ENERGY STAR®
